Sync Energy 7.5m Tethered Wall Charger 2, 7.4kW, with Wi-Fi and LAN - EVWC2T7G-01

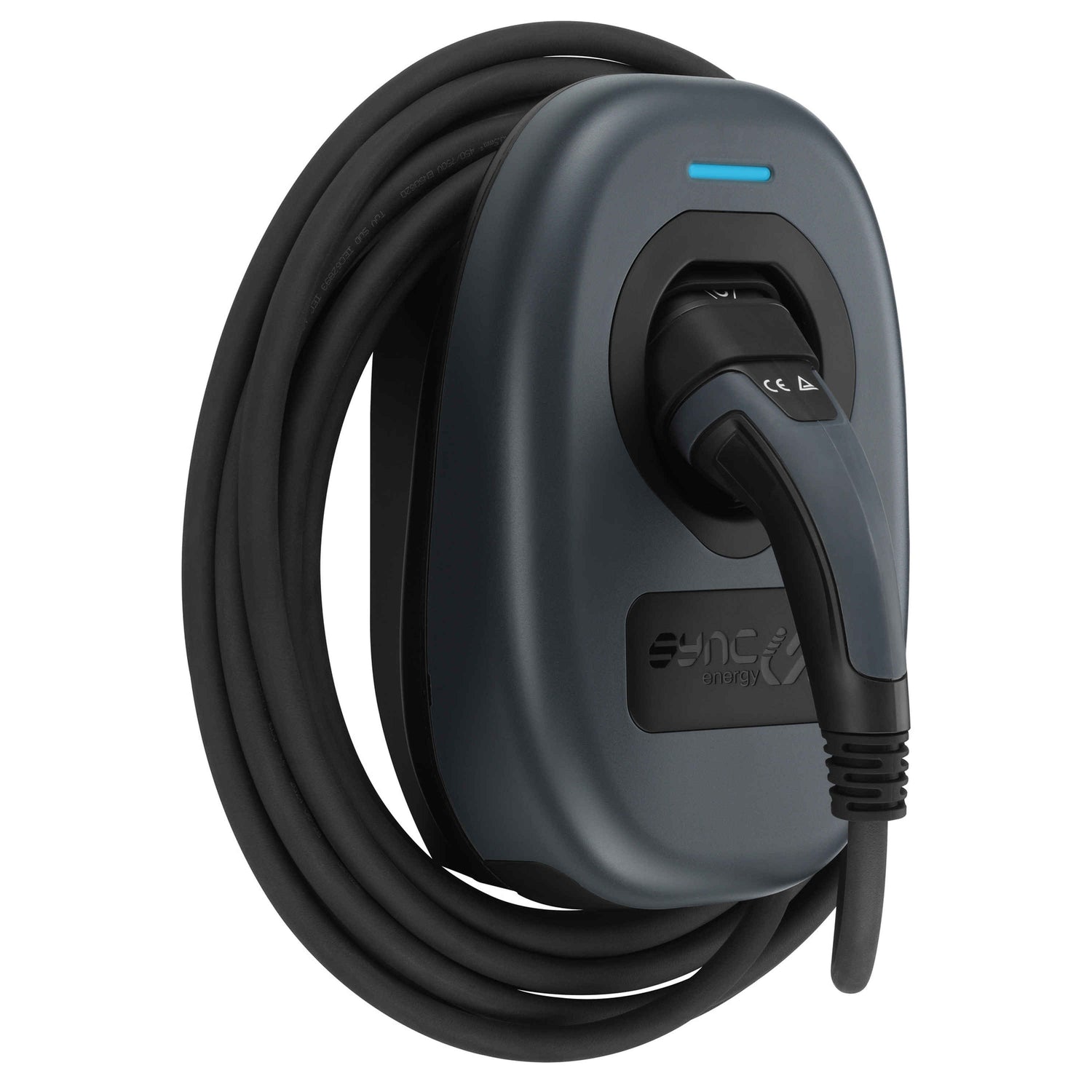

Sync Energy Wall Charger 2 – 7.4kW Tethered EV Charger with Wi-Fi & LAN

The Sync Energy Wall Charger 2 is a compact and intelligent tethered EV charger designed for convenient, cost-effective home charging. Delivering up to 7.4kW (32A), it includes an attached 7.5-metre Type 2 charging cable, Wi-Fi and LAN connectivity, solar charging support and full smart-app control.

The permanently attached cable means there is no need to retrieve a separate charging lead—simply unwind the cable, connect it to your vehicle and begin charging.

⚡ Fast 7.4kW Charging

Charge your electric vehicle at up to 7.4kW from a single-phase supply, with an adjustable charging current from 6A to 32A.

🔌 Tethered 7.5m Type 2 Cable

The integrated 7.5-metre Type 2 charging cable provides plenty of reach across driveways and parking spaces.

A built-in cable wrap and connector holster keep everything neat, protected and ready for the next charge.

☀️ Auto Solar Charging

Make better use of your renewable energy by directing available excess solar power into your vehicle—helping reduce reliance on grid electricity and lower charging costs.

💷 Intelligent Tariff Sense

Tariff Sense connects with UK energy tariffs, providing real-time charging-cost information and helping you schedule charging when electricity is cheaper.

📱 Smart App Control

Connect through Wi-Fi or LAN and use the Sync Energy app to monitor and control your charger.

The unit also supports OCPP 1.6J connectivity and free lifetime over-the-air software and firmware updates.

🛡️ Integrated Safety Protection

Built-in protective features simplify installation and provide safe, reliable everyday operation:

• ✅ Integrated open PEN conductor protection
• ✅ No separate earth rod required
• ✅ Built-in 30mA Type A RCD protection
• ✅ 6mA DC leakage protection
• ✅ Overcurrent and load protection
• ✅ Anti-tamper detection
• ✅ Load-management kit supplied

🌧️ Built for Outdoor Installation

The tough, UV-stabilised polycarbonate enclosure carries an IP65 weather-resistance rating and an IK10 impact rating, making it suitable for indoor or outdoor wall mounting.

🔵 Clear LED Status Indicator

The integrated RGB LED and buzzer provide clear operating updates:

• 🔵 Blue – Standby
• 🔵 Flashing blue – Preparing
• 🟢 Green – Charging
• 🟡 Yellow – No network connection
• 🔴 Red – Error
• 🟣 Purple – Load-balancer error

📋 Technical Specifications

• Charging output: Up to 7.4kW
• Maximum current: 32A
• Configurable current: 6–32A
• Input voltage: 220–240V AC
• Input frequency: 50–60Hz
• Supply: Single phase
• Charging mode: Mode 3
• Connector: Type 2 charging plug
• Cable length: 7.5 metres
• Cable management: Built-in cable wrap and connector holster
• Connectivity: 2.4GHz Wi-Fi and RJ45 Ethernet
• Connection protocol: OCPP 1.6J
• Bluetooth: 4.2 BR/EDR and BLE
• Ingress protection: IP65
• Impact resistance: IK10
• Operating temperature: -25°C to +55°C
• Dimensions: 305mm × 201mm × 115mm
• Housing: UV-stabilised polycarbonate
• Colour: Black body with anthracite-grey trim
• Warranty: 3 years

📦 Supplied With

• Sync Energy Wall Charger 2
• Integrated 7.5m Type 2 charging cable
• Load-management kit
• Base-fixing washers
• Assembly lid bolts
• Blanking plug
• 25mm compression gland
• User-side connector
• Cord grip and assembly screws

✅ Key Benefits

• ⚡ Up to 7.4kW home charging
• 🔌 Integrated 7.5m Type 2 charging cable
• 🧹 Built-in cable wrap and connector holster
• ☀️ Compatible with excess solar generation
• 💷 Intelligent UK tariff integration
• 📱 Sync Energy app control
• 🌐 Wi-Fi and wired LAN connectivity
• 🛡️ Built-in PEN and RCD protection
• 🌧️ Weatherproof IP65 construction
• 🔄 Free lifetime over-the-air updates
• 🇬🇧 Compliant with UK Smart Charge Points Regulations
