Eagle Analogue CCTV

(8 products)

Eagle Analogue CCTV from Harbro Electrical uses the HDCVI protocol to deliver 5MP Full Colour surveillance over standard RG59 coaxial cable. Two camera finishes (White and Grey), a choice of 4-channel or 8-channel AI DVR, and ready-to-install kits with or without a 2TB hard drive. The Eagle Analogue range is the most cost-effective upgrade path for any property where coaxial cable is already installed and in good condition.

All prices exclude VAT. Same-day collection from our Peterlee, Co Durham trade counter at SR8 2LY. Free UK mainland delivery on orders over £70.

5MP Full Colour HDCVI over existing RG59 coax HDCVI protocol not HD-TVI, not AHD AI DVR human and vehicle detection Kits available with and without 2TB HDD Trade prices ex. VAT, Peterlee counter
View as

What Is HDCVI and Why Does It Matter for Analogue Upgrades?

HDCVI (High Definition Composite Video Interface) transmits high-resolution video over standard RG59 coaxial cable. Unlike IP cameras that require Cat5e or Cat6 Ethernet, HDCVI works with the cable already in place in most legacy analogue CCTV installations.

Key facts about HDCVI at Harbro:

  • Uses standard RG59 coaxial cable, no re-wiring required for upgrades
  • Transmits HD video up to approximately 500m on coax
  • 5MP Full Colour resolution, sharper than 1080p and 4MP legacy systems
  • Full Colour maintains colour imaging in low-light conditions
  • Simpler installation than IP, no network configuration required
  • The Eagle cameras Harbro stocks are HDCVI specifically, the DVRs themselves accept a wider range of formats (see FAQ below)

Eagle Analogue camera range

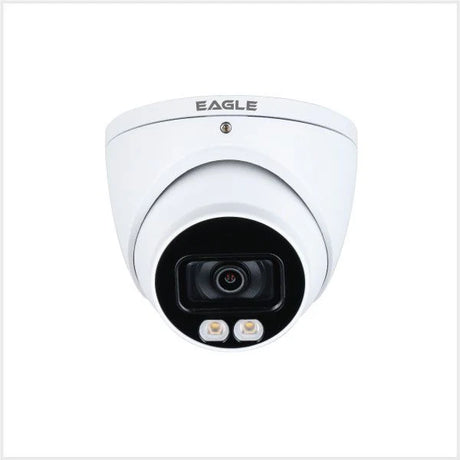

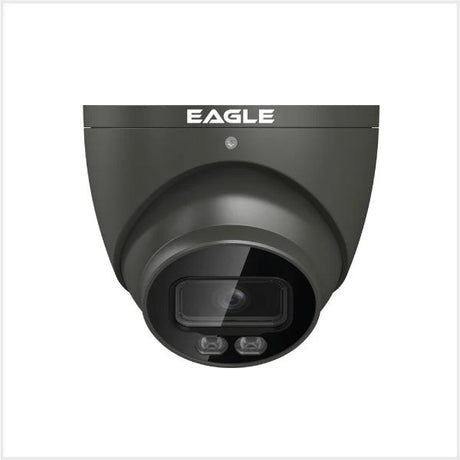

The Eagle Turret 5MP Full Colour HDCVI camera is suited to schools, retail spaces and car parks as much as domestic installs, and comes in two finishes. Both share the same specification: 5MP Full Colour (2592 × 1944) resolution, HDCVI protocol, 2.8mm fixed lens, turret form factor, full colour night imaging via a built-in illuminator effective to 40m, IP67 weatherproof rating, and 12V DC power. Choose White or Grey to match the property or the existing cameras on an upgrade.

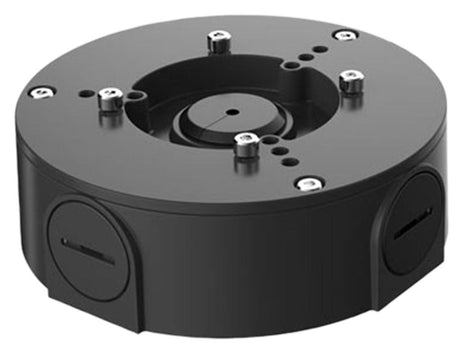

The RING-J1 White Camera Base and RING-J1-G Grey Camera Base are cable management rings with an IP66-rated junction box built in, giving a clean, protected cable entry at each camera position rather than exposed connections behind the housing.

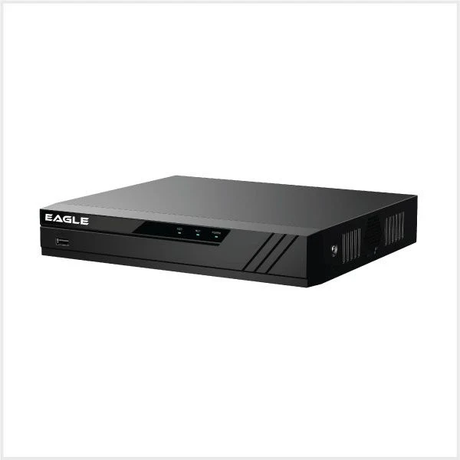

Eagle AI DVR Range

Two channel configurations suit the majority of domestic and light commercial installs. Both DVRs are Penta-Brid, accepting HDCVI, AHD, TVI, CVBS and IP camera inputs on the same recorder, and both include AI-based detection, though not every AI feature runs on every channel.

Specification 4-Channel
EAG-5MP-PRO-AI3-4BB
8-Channel
EAG-5MP-PRO-AI3-8BB
Channels 4 8
Max HDCVI/analogue resolution 5MP 5MP
Max IP camera channels Up to 6, 6MP max per channel Up to 12, 6MP max per channel
SMD Plus (human/vehicle) All channels All channels
Perimeter protection 1 channel 1 channel
Face recognition 1 channel 1 channel
Video input formats HDCVI, AHD, TVI, CVBS, IP HDCVI, AHD, TVI, CVBS, IP
Mobile app DMSS or Easy Viewer Pro DMSS or Easy Viewer Pro
Hard drive Not included (sold separately or via kit) Not included
Best for Up to 4 cameras, standard domestic Larger sites, future expansion planned

Choose the 8-channel DVR over the 4-channel DVR if you plan to install more than 4 cameras at any point, or if the install is on a commercial property where requirements may grow. Replacing the DVR later to add capacity costs more than choosing the 8-channel model at the outset. If perimeter protection or face recognition matter to the job, reserve that single AI-enabled channel for the most important camera in the install, an entrance or a gate, since neither feature extends across every channel on either model.

Complete CCTV Kits

Two kit configurations provide everything needed for a 4-camera install in a single order, cameras, cable, power and DVR:

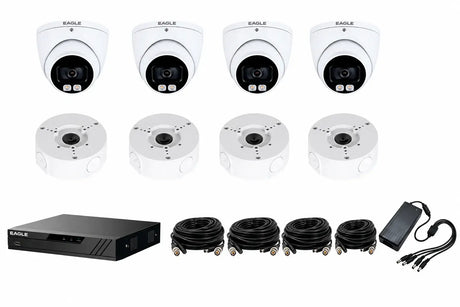

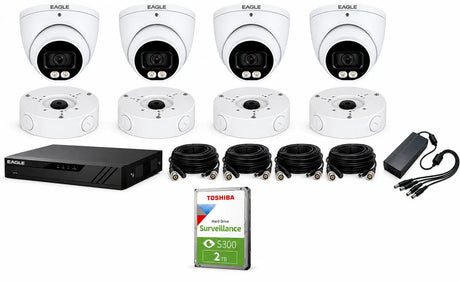

  • Eagle Analogue 4-camera kit with 2TB HDD: 4x Eagle Turret 5MP White cameras, 4x RING-J1 White camera bases, 4-channel DVR, 4x 20m BNC + DC extension cables, a 4-way power supply, and a 2TB hard drive pre-installed. The ready-to-record option for most installs.
  • Eagle Analogue 4-camera kit without HDD: the same contents minus the hard drive, for installers supplying their own storage or splitting the order across budget periods.

Both kits bundle the White camera finish. Grey is only available as an individual camera purchase alongside a separately bought DVR, not through either kit.

The BNC + DC extension cables carry both video and power in one run, and the 4-way power supply feeds all four cameras from the DVR end, so both kits are genuinely complete for a standard 4-camera install. Beyond the 20m cable runs included, or for a coax termination kit if extending further, see our BNC connectors. Call the trade counter on 0191 518 1998 for advice on longer runs before ordering.

Eagle Analogue vs Dahua IP: which system is right?

Neither system is universally better, the right choice depends on what's already installed and what the job needs, not which is the newer technology. Use this table to compare the two on the factors that actually decide it.

Factor Eagle Analogue HDCVI Dahua IP CCTV
Cable required RG59 coaxial (uses existing runs) Cat5e / Cat6 Ethernet
Camera resolution 5MP Full Colour 6MP to 8MP (higher)
Power method 12V DC per camera (separate supply) PoE from NVR, single cable only
Network needed No, coax runs direct to DVR Yes, standard TCP/IP network
Active deterrence DVR-level alerts only Available on TiOC Pro only
Cost per camera Lower Higher
Best for Existing coax in good condition, cost-sensitive upgrades New builds, properties without coax, deterrence required

North East CCTV trade counter at Peterlee

Eagle Analogue cameras, DVRs and kits are in stock at Harbro Electrical, 5 & 6 Whitworth Road, Peterlee, Co Durham, SR8 2LY. Monday to Thursday 7:30am to 5:00pm, Friday 7:30am to 4:00pm, Saturday 8:30am to 12:30pm. Call 0191 518 1998 or email sales@harbroelectrical.co.uk for trade pricing on multi-unit orders.

Related Collections

Eagle Analogue CCTV: Frequently Asked Questions

What protocol do Eagle Analogue cameras use?

HDCVI (High Definition Composite Video Interface). This is an important specification to verify before purchase, these cameras are not HD-TVI and are not AHD. They're paired with the Eagle 5MP AI DVR range at Harbro, which does support HDCVI compatibility alongside other formats, see below.

Is the Eagle DVR only compatible with HDCVI cameras?

No, the DVR hardware itself is multi-format, accepting HDCVI, AHD, TVI, CVBS and IP camera inputs. The Eagle cameras Harbro stocks alongside it are HDCVI specifically, that's the pairing this collection is built around. If you're connecting this DVR to existing cameras from a different system rather than buying Eagle cameras new, confirm their format first, the DVR itself doesn't need them to be HDCVI, but Harbro's own camera range is.

Can Dahua IP cameras be connected to an Eagle Analogue DVR?

Yes, with one limit worth knowing before mixing systems. The 4-channel DVR accepts up to 6 IP camera channels, the 8-channel up to 12, alongside its HDCVI channels. But each IP channel is capped at 6MP, so an 8MP Dahua TiOC-Lite connected to an Eagle DVR would record at 6MP, not its native resolution. Fine for most jobs, worth knowing if the higher resolution was the reason for choosing that camera in the first place. Remote viewing on a mixed system works through either DMSS (Dahua's app) or Easy Viewer Pro (Eagle's own app).

Does the AI detection work on every camera at once?

It depends which feature. SMD Plus, the human and vehicle classification that cuts down false alerts, runs on every channel on both DVRs. Perimeter protection and face recognition are both limited to 1 channel, even on the 8-channel model, so they're best reserved for the single most important camera in the install, an entrance or a gate, rather than expected across the whole system.

Can I use Eagle Analogue cameras with existing coaxial cable?

Yes. Eagle HDCVI cameras are designed to work over standard RG59 coaxial cable, the cable used in the vast majority of legacy analogue CCTV installations. An existing analogue system can usually be upgraded to 5MP Full Colour by replacing cameras and DVR, without rerouting cable. The existing cable must be in good condition and within the HDCVI transmission limit of approximately 500m per run.

What resolution are Eagle Analogue cameras?

5MP Full Colour (2592 × 1944). Significantly sharper than 1080p and 4MP cameras from previous analogue generations. Full Colour means the camera maintains colour imaging in low-light conditions using its built-in illuminator, up to 40m, rather than switching to black and white as older analogue cameras do.

What is the difference between the 4-channel and 8-channel Eagle DVR?

The Eagle 4CH DVR (EAG-5MP-PRO-AI3-4BB) supports up to 4 HDCVI cameras or up to 6 IP channels. The 8CH DVR (EAG-5MP-PRO-AI3-8BB) supports up to 8 HDCVI cameras or up to 12 IP channels. Both include AI smart motion detection and remote viewing via the DMSS or Easy Viewer Pro app. Choose the 8CH model if more than 4 cameras may be added at any point.

Does the Eagle Analogue kit include everything I need?

Yes, both kit configurations are complete for a standard 4-camera install: four cameras, four RING-J1 cable management bases, a 4-channel DVR, four 20m BNC and DC extension cables carrying both video and power, and a 4-way power supply. The version with a 2TB hard drive is ready to record straight out of the box. Nothing else needs buying separately unless a camera run needs to extend beyond the included 20m cables.

Do the Eagle Analogue kits come in the Grey finish?

No. Both kit configurations bundle the White camera specifically. Grey is only available by buying the camera individually alongside a separately purchased DVR, not as a kit option.

Is analogue CCTV still worth installing?

Yes, in specific circumstances. Analogue HDCVI is the right choice when a property already has RG59 coaxial cable in good condition and the budget or disruption of rerouting Cat5e or Cat6 cable to every camera position is not viable. At 5MP Full Colour resolution, Eagle Analogue delivers excellent footage quality with less network configuration than IP. For new builds or properties without existing coax, Dahua CCTV is generally the better choice.

Can I view Eagle Analogue CCTV cameras remotely?

Yes. The Eagle AI DVRs support remote viewing via the DMSS or Easy Viewer Pro app on iOS and Android. Once connected to a broadband router, live feeds and recordings can be accessed from any location. No subscription fee is required for basic remote viewing. A static IP or dynamic DNS service is recommended for consistent remote connectivity.

Where can I buy Eagle Analogue CCTV in County Durham?

Eagle Analogue cameras, DVRs and kits are in stock at Harbro Electrical, 5 & 6 Whitworth Road, Peterlee, Co Durham, SR8 2LY. Monday to Thursday 7:30am to 5:00pm, Friday 7:30am to 4:00pm, Saturday 8:30am to 12:30pm. Call 0191 518 1998 to confirm stock. We supply CCTV trade across Peterlee, Hartlepool, Sunderland, Durham and Seaham.
