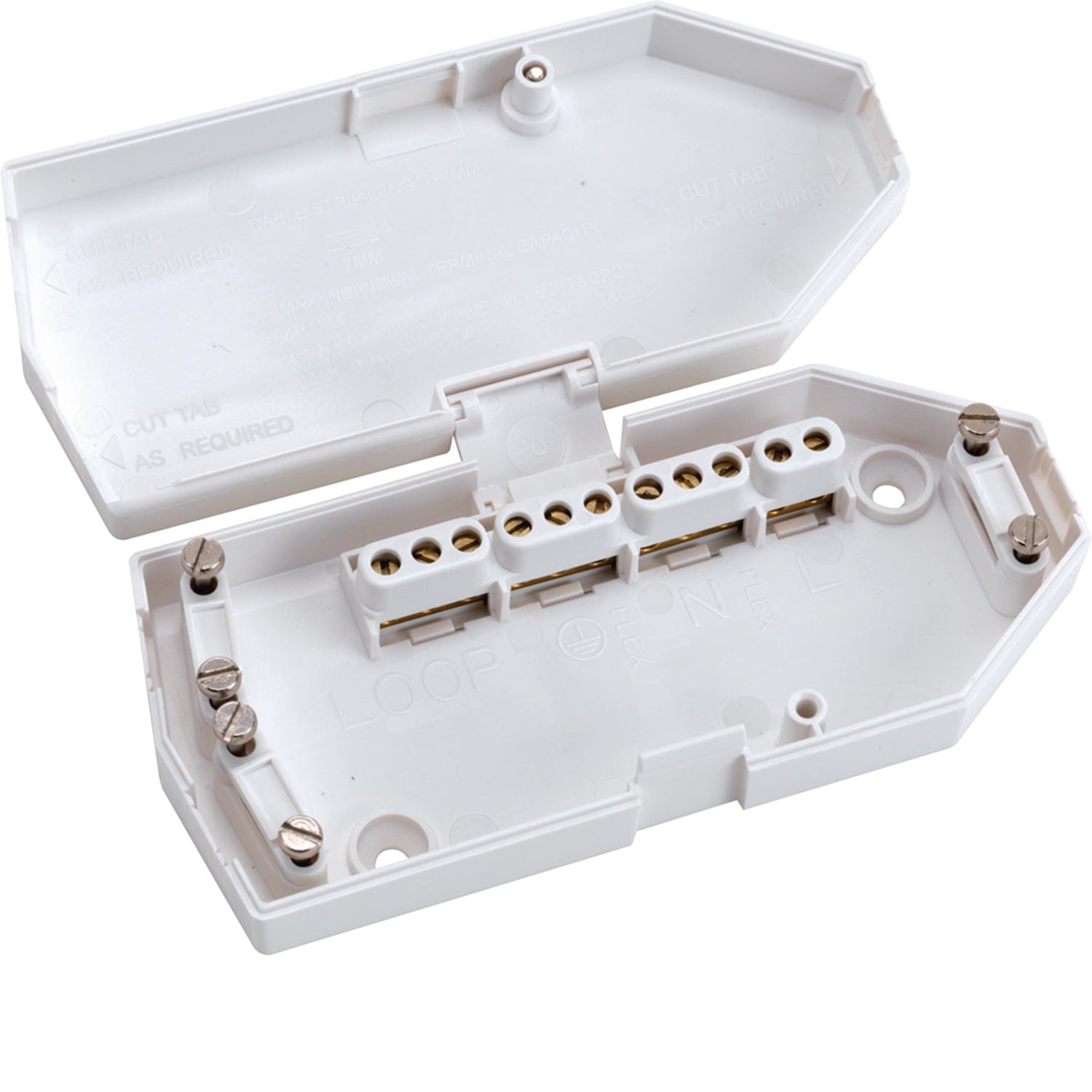

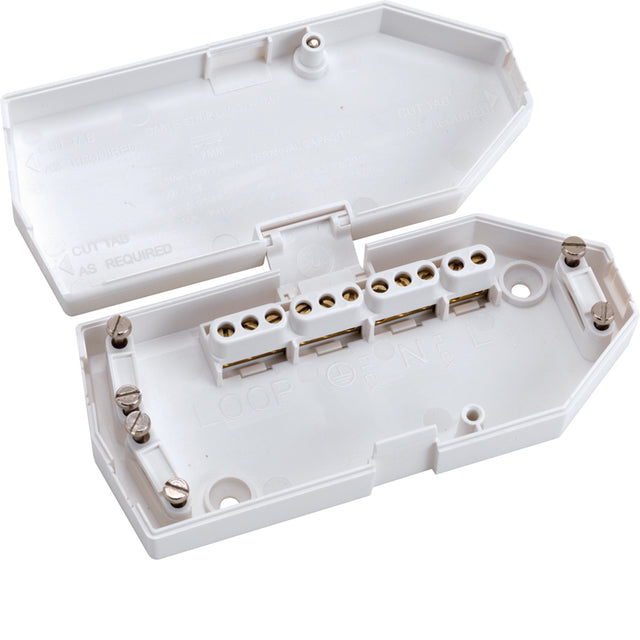

Hager Ashley - J501 - 16A 4 Terminal Downlighter Junction Box

Hager Ashley J501 16 Amp Downlight Junction Box 4 Terminal. Supplied as a pack of 1. J501 is specially designed for usage throughout lighting circuits, ideal for installing downlights efficiently and safely.

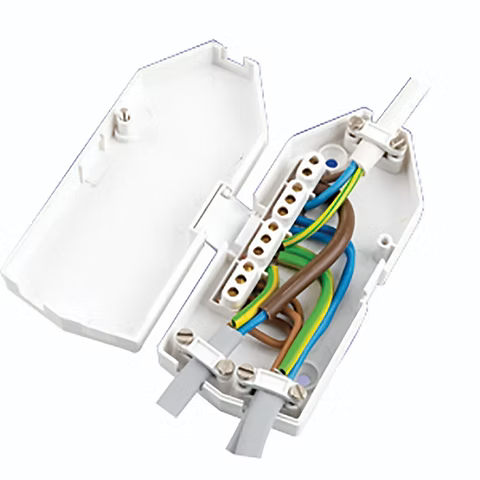

J501 is packed with features for safer, more effective wiring. Secure cable clamps fix cables in place, providing easy installation and connection whilst protecting the wiring from damage and negating the risk of any exposed unsheathed connections. The clamps can be reversed for single and double cable entry.

Cables exit at either end of the junction box, allowing for ease of installation, pushing or pulling through a cut-out without the risk of damage to the wiring or loosening connections.

Designed for ease of use with a slimline construction, fitting through 58mm diameter hole, whilst providing the option for wall fixing using two back screws.

Hager has applied the quality and expertise of design which has made them a favourite throughout the trades, aligning all terminals to maximise wiring space, whilst applying a logical, easy to use 3 plate terminal style with separate terminals for flexible cords, ideal for protecting smaller flexible conductors.

Features of Hager J501:

• Lighting junction box (downlighter junction box)
• Fits through a 58mm diameter hole
• 17th Edition Compliant
• Cable clamps to prevent strain on terminations
• 3 plate terminal style with captive terminal screws
• Separate terminals for flexible cords
• Junction box complete with incoming and outgoing cable clamps
• Current Rating: 16A
• Max Individual Terminal Capacity: 3x 1.5mm
• Number of terminals: 3
• Max Flex terminal capacity: 2 x 1.5mm
• Number of flex terminals: 1
• Height: 53mm
• Width: 122mm
• Depth: 27mm
• Standards: BS EN 60670-22
