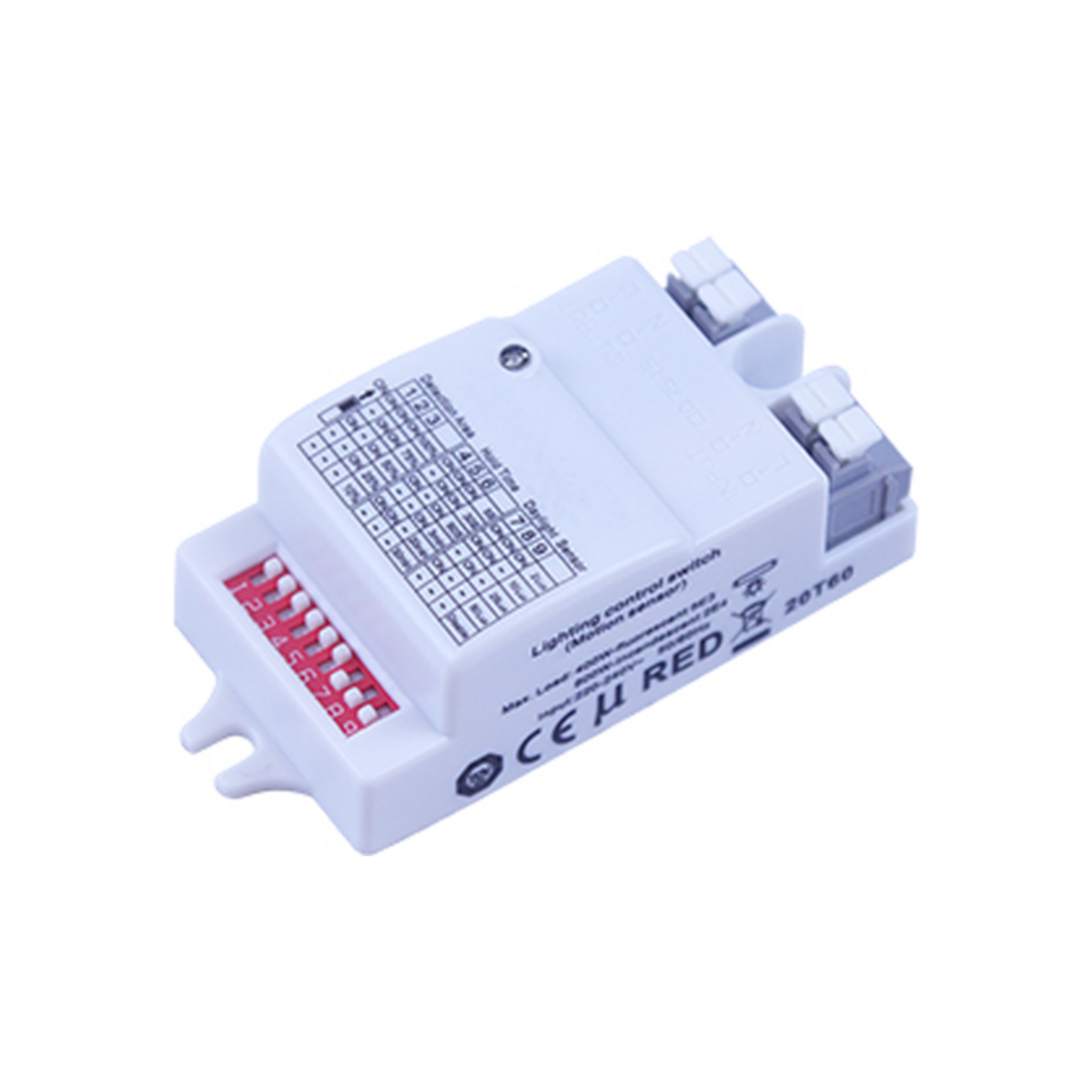

ELD Microwave Motion Sensor Plugin for LUN LED Bulkheads - LUN5-MW

📡 Microwave Motion Sensor Plugin

The ELD LUN5-MW is a compact plug-in microwave sensor designed for compatible ELD LUN LED bulkheads. It automatically switches the light according to detected movement and the surrounding light level, helping reduce unnecessary energy usage.

⚙️ Adjustable Sensor Settings

The detection area, time delay and daylight threshold can be precisely configured using the integrated DIP switches.

📏 Wide Detection Coverage

Suitable for installation at mounting heights of up to six metres, with a detection area reaching up to 12 metres in diameter.

🔧 Compact, Installer-Friendly Design

Its compact housing fits neatly inside compatible luminaires, while the four-pole press-in terminal provides straightforward connection. Zero-crossing operation helps protect the sensor against inrush current.

Key Features:

• Automatic switching based on movement and ambient light

• Adjustable detection area

• Adjustable time delay

• Adjustable daylight threshold

• Settings controlled using DIP switches

• Detection range up to 12 metres in diameter

• Maximum mounting height: 6 metres

• Zero-crossing operation

• Four-pole press-in terminal: L, N, N and L′

• White polycarbonate construction

• IP20 rated

• Dimensions: 77mm × 36mm × 25mm

• Compatible with LUN-CE3X5, LUN-HPCE3X5 and LUN-MINI-2X5 fittings

• Product code: LUN5-MW

• EAN: 5055530835153

Please note: this listing is for the microwave sensor plugin only. The compatible LED bulkhead is supplied separately.
