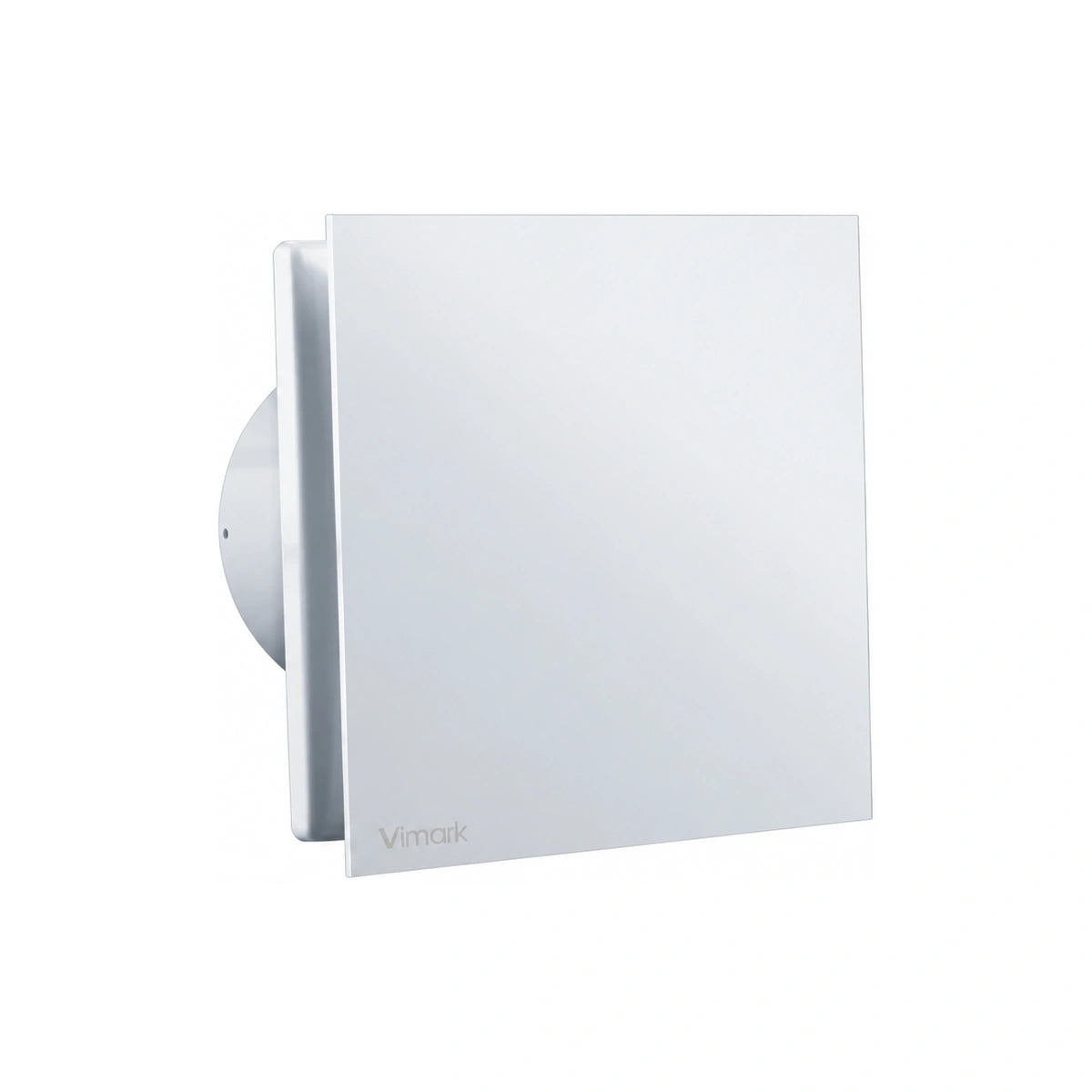

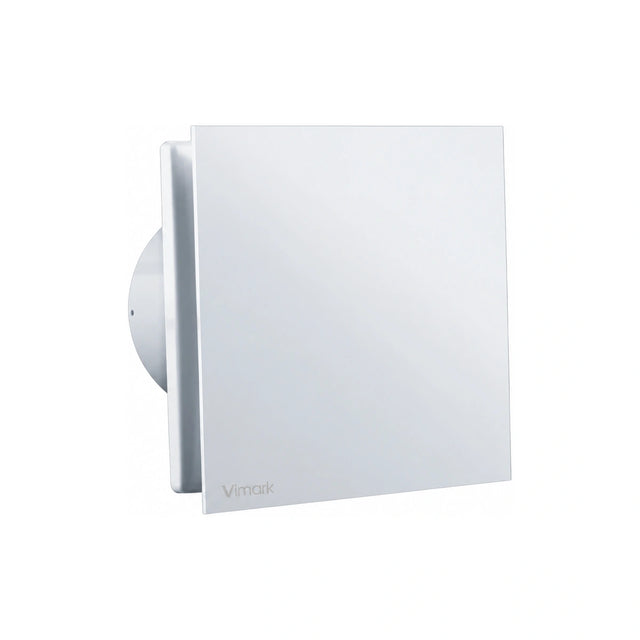

Deta Vimark 4″ Zone 1 Flat Fascia Extractor Fan with Adjustable Timer 100mm - 4720ZT

Product Description

The Deta Vimark 4720ZT is a stylish 100mm flat fascia extractor fan with an adjustable overrun timer, designed for bathroom ventilation. Suitable for Zone 1 installation, it can be positioned closer to the bath or shower to help extract moisture at its source.

⏱️ Adjustable Overrun Timer
Continues extracting after switching off to help clear lingering moisture. Adjustable between 2–30 minutes, with a factory setting of 15 minutes.

🌬️ Effective Extraction
Provides airflow of 83m³/hour (23 litres/second) to help remove moist and stale air.

🔇 Quiet, Low Energy Operation
Features an 8W motor and a noise level of 29dB at 3 metres, with specific fan power of 0.32W/l/s.

✨ Modern Flat Fascia
The clean, understated front blends neatly into your bathroom, providing a discreet alternative to a traditional exposed grille.

🔧 Suitable for Short Duct Runs
Designed for 100mm / 4″ ducting, ideal for through-wall applications or duct runs shorter than 2 metres.

🛡️ Built-In Protection
Features an IP44 rating, double insulation and a one-shot thermal fuse, backed by a 3-year guarantee.

Technical Specifications

• Product code: 4720ZT

• Fan type: Zone 1 flat fascia extractor fan

• Duct size: 100mm / 4″

• Control: Adjustable overrun timer

• Extraction rate: 83m³/h / 23l/s

• Supply voltage: 240V AC

• Motor rating: 8W

• Specific fan power: 0.32W/l/s

• Noise level: 29dB at 3m

• Timer adjustment: 2–30 minutes; factory set to 15 minutes

• IP rating: IP44

• Insulation: Double insulated

• Maximum ambient temperature: 40°C

• Dimensions: 160mm H × 136mm W

• Recess depth: 79mm

• Projection: 38mm

• Standard: BS EN 60335-2-80

• Guarantee: 3 years
