Deta Vimark 4″ Low Voltage Zone 1 Extractor Fan with Adjustable Timer, 12V, 100mm - 4616

Product Description

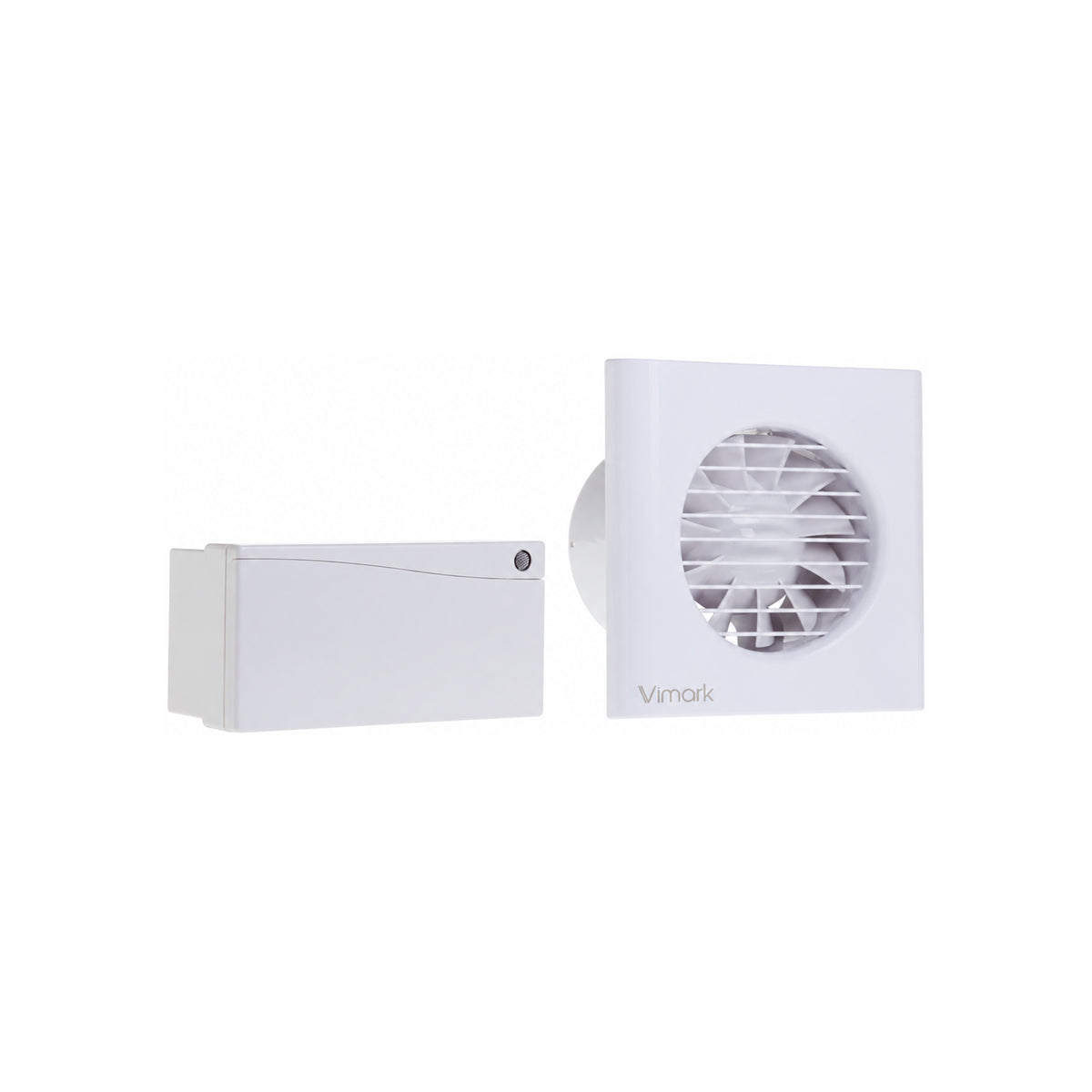

The Deta Vimark 4616 is a slim 100mm low voltage extractor fan with an adjustable overrun timer, suitable for bathrooms, toilets and kitchens. Operating at 12V AC, the fan is suitable for Zone 1 bathroom installation, helping remove moist air close to its source.

⏱️ Adjustable Overrun Timer
Continues extracting after switching off to help clear lingering moisture. Adjustable between 2–30 minutes, with a factory setting of 15 minutes.

🌬️ Effective Extraction
Provides airflow of 85m³/hour (24 litres/second) to help remove moist and stale air.

🔇 Quiet, Low Energy Operation
Features an 8W motor, a noise level of 28dB at 3 metres and specific fan power of 0.34W/l/s.

⚡ Low Voltage Bathroom Ventilation
The fan operates at 12V AC. Its transformer requires a 240V supply and must be installed outside Zone 2.

🔧 Slim Design & Convenient Installation
A neat 150 × 150mm fascia projects just 19mm. Designed for 100mm / 4″ ducting, it is ideal for through-wall applications or duct runs shorter than 2 metres.

🛡️ Built-In Protection
Includes an IP24 rating, double insulation and a one-shot thermal fuse, backed by a 3-year guarantee.

Technical Specifications

• Product code: 4616

• Duct size: 100mm / 4″

• Control: Adjustable overrun timer

• Bathroom suitability: Fan suitable for Zone 1

• Extraction rate: 85m³/h / 24l/s

• Fan operating voltage: 12V AC

• Transformer supply: 240V; install outside Zone 2

• Motor rating: 8W

• Specific fan power: 0.34W/l/s

• Noise level: 28dB at 3m

• Timer adjustment: 2–30 minutes; factory set to 15 minutes

• IP rating: IP24

• Insulation: Double insulated

• Maximum ambient temperature: 40°C

• Fascia dimensions: 150 × 150mm

• Fascia projection: 19mm

• Standard: BS EN 60335-2-80

• Guarantee: 3 years
