Product Description
Product Overview

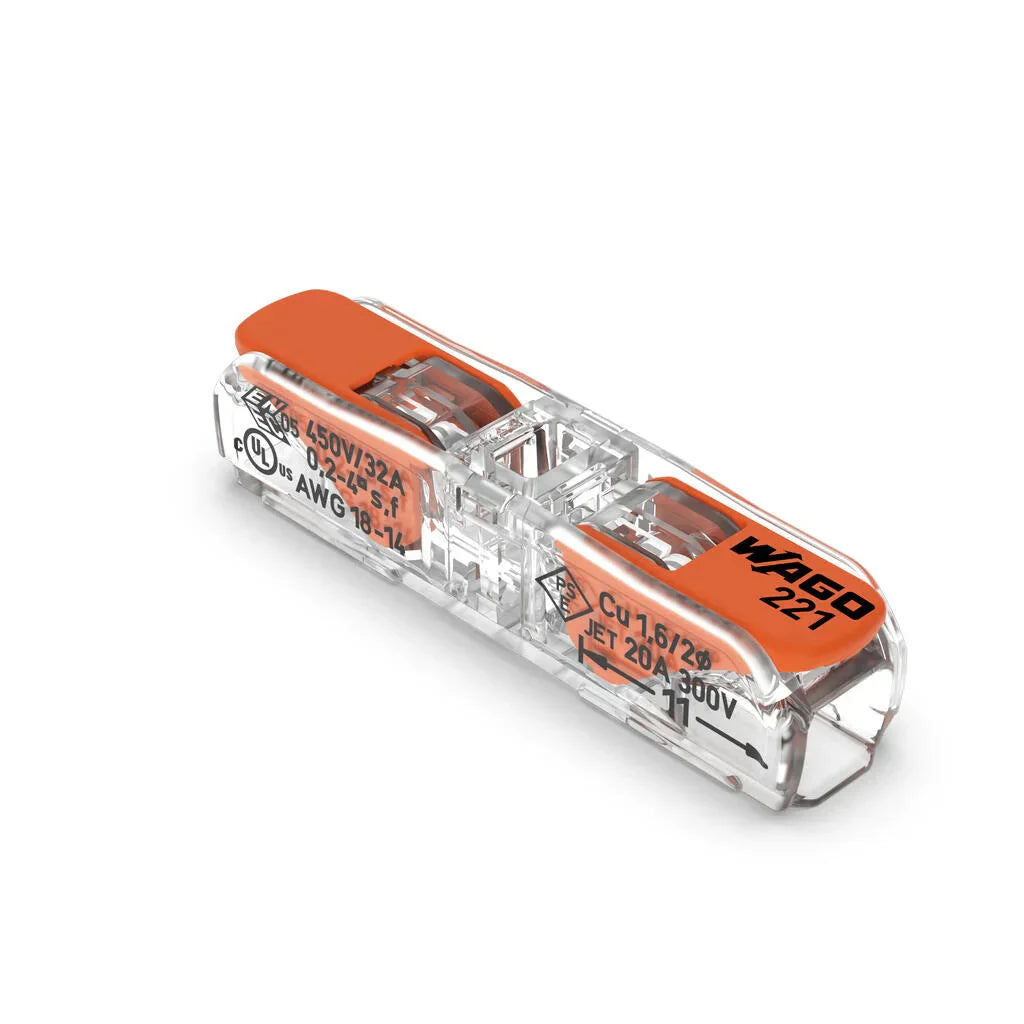

The Wago 221-2411 is a compact, tool-free lever connector designed for splicing solid, stranded, and fine-stranded conductors. It serves as a direct, faster, and more secure alternative to traditional twist-on wire nuts or crimped splices.
As the slim 2-conductor variant in Wago's 221 lever range, the 221-2411 is engineered specifically for space-restricted installations, junction boxes, back boxes, and enclosures. The clear housing allows for immediate visual inspection to verify full conductor insertion and correct strip length.
Key Capabilities
- Tool-Free Lever Clamp: Eliminates screwdrivers, crimpers, and manual wire twisting.
- Multi-Conductor Support: Handles solid, stranded, and fine-stranded copper wires.
- Transparent Enclosure: Provides visual verification of contact depth and strip length.
- Slimline Profile: Compact footprint optimized for overcrowded back boxes and junction points.
- Carrier Integration: Fully compatible with Wago mounting carriers (1-way to 5-way) for gang-mounting.
221 Series Selection Matrix
Wago 221 connectors vary by conductor capacity and maximum rated cable gauge. Use the table below to verify you have the correct model for your application.
| Part Number | Max Cable Size | Conductor Count | Design Variant / Pack |
|---|---|---|---|
| 221-2411 Selected | 4mm² | 2-Way | Slimline / Compact (Pack of 60) |
| 221-412 | 4mm² | 2-Way | Standard (Pack of 100) |
| 221-413 | 4mm² | 3-Way | Standard (Pack of 50) |
| 221-415 | 4mm² | 5-Way | Standard |
| 221-613 | 6mm² | 3-Way | Heavy-Duty High Current |
Frequently Asked Questions
Do I need any tools to use this connector?
No. It's a lever-operated connector, lift the lever, insert the stripped conductor, push the lever back down. No screwdriver, crimping tool or twisting needed.
Can I mix solid and stranded conductors in the same connector?
Yes, the 221-2411 is rated for solid, stranded and fine-stranded conductors, so different conductor types can be joined in the same connection without needing a different connector for each.
What's the difference between this and the standard 221 series connectors?
The 221-2411 is a slimmer, more compact version of the same lever-connector technology, designed specifically to save space in tight junction boxes and enclosures. Electrically it works the same way as the wider 221 range, lever-operated, tool-free, transparent housing.
I need more than 2 conductors, is there a version for that?
Yes, the standard 221 range covers 3-way (221-413)and 5-way (221-415) versions at the same 4mm² cable rating as this connector.
What if I'm working with heavier cable, up to 6mm²?
The standard 221-2411 and its siblings are rated to 4mm². For 6mm² cable, the 221-613 is the 3-way connector
Can these be ganged together for multiple connections?
Yes, they're compatible with Wago's mounting carriers, available from 1-way up to 5-way, for securing several connectors together in a distribution box or enclosure rather than leaving them loose.
How can I tell if a conductor is properly connected?
The housing is transparent, so you can see directly whether the conductor is fully inserted and stripped to the correct length, rather than relying on the lever alone to judge the connection.
Can this be reopened and reconnected if I make a mistake?
Yes, the lever can be lifted and the conductor removed and reinserted, unlike a crimped or twisted joint, which has to be cut off and redone.
Can this be used outdoors?
The connector itself doesn't carry a specific outdoor or damp-location rating, it needs housing in an appropriately IP-rated enclosure or junction box for any exposed or wet location, rather than being relied on alone.
