Product Description

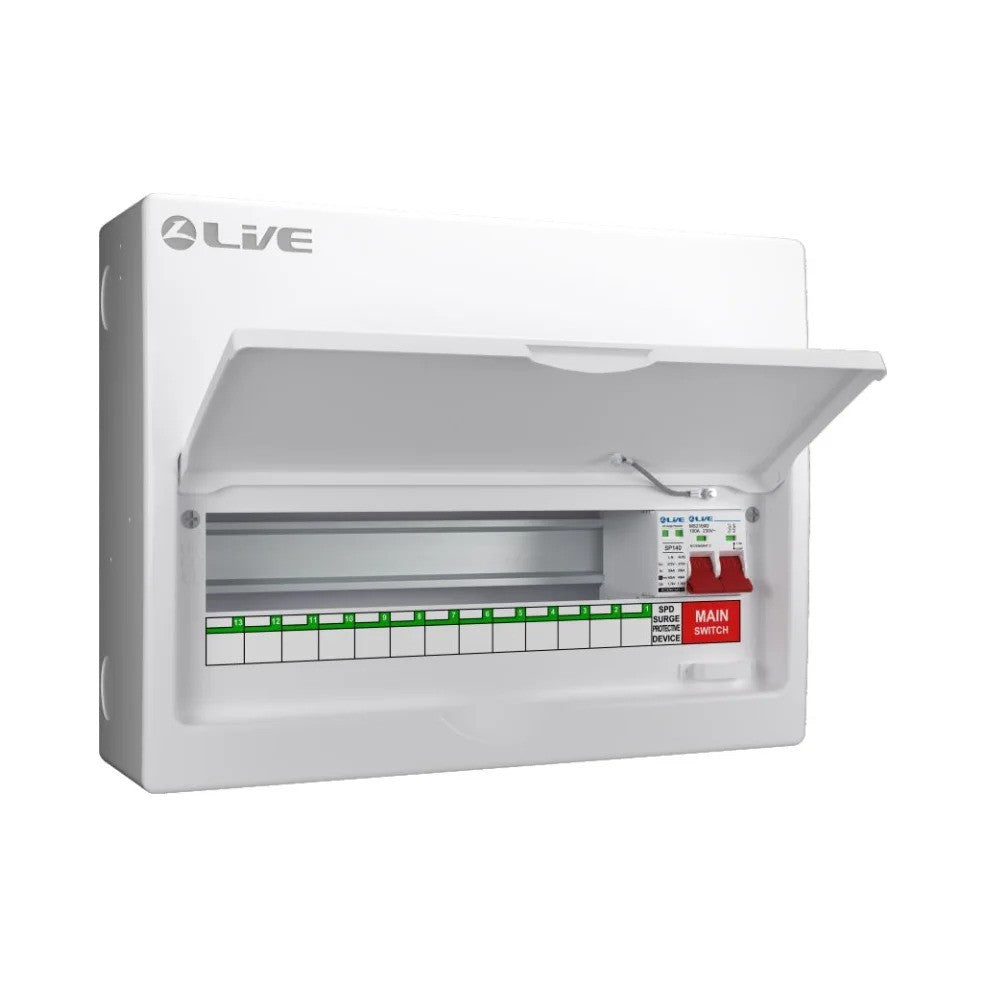

LIVE 14 Way Metal Clad Surge Protection Consumer Unit 100A Main Switch (11 Usable Ways) LSMC14M-SP
- Fully enclosed metal constructed body with a drop down metal cover and lid. 11 USABLE WAYS
- It features raised key holes to ensure the unit is secure while also providing easier installation.
- Also included and pre-fit is an Earth terminal bar.
- Circular cable entry knock-outs at the top and bottom.
- The unit is finished in a white polyester powder coat to RAL9010 standards.
- 14-Way Metal Enclosure comes with 100A mains switch and 20/40kA DP Surge protection device with 11 free ways
- Width: 316mm
- Height: 270mm
- Depth: 110mm
- Safe option for both residential and commercial use.

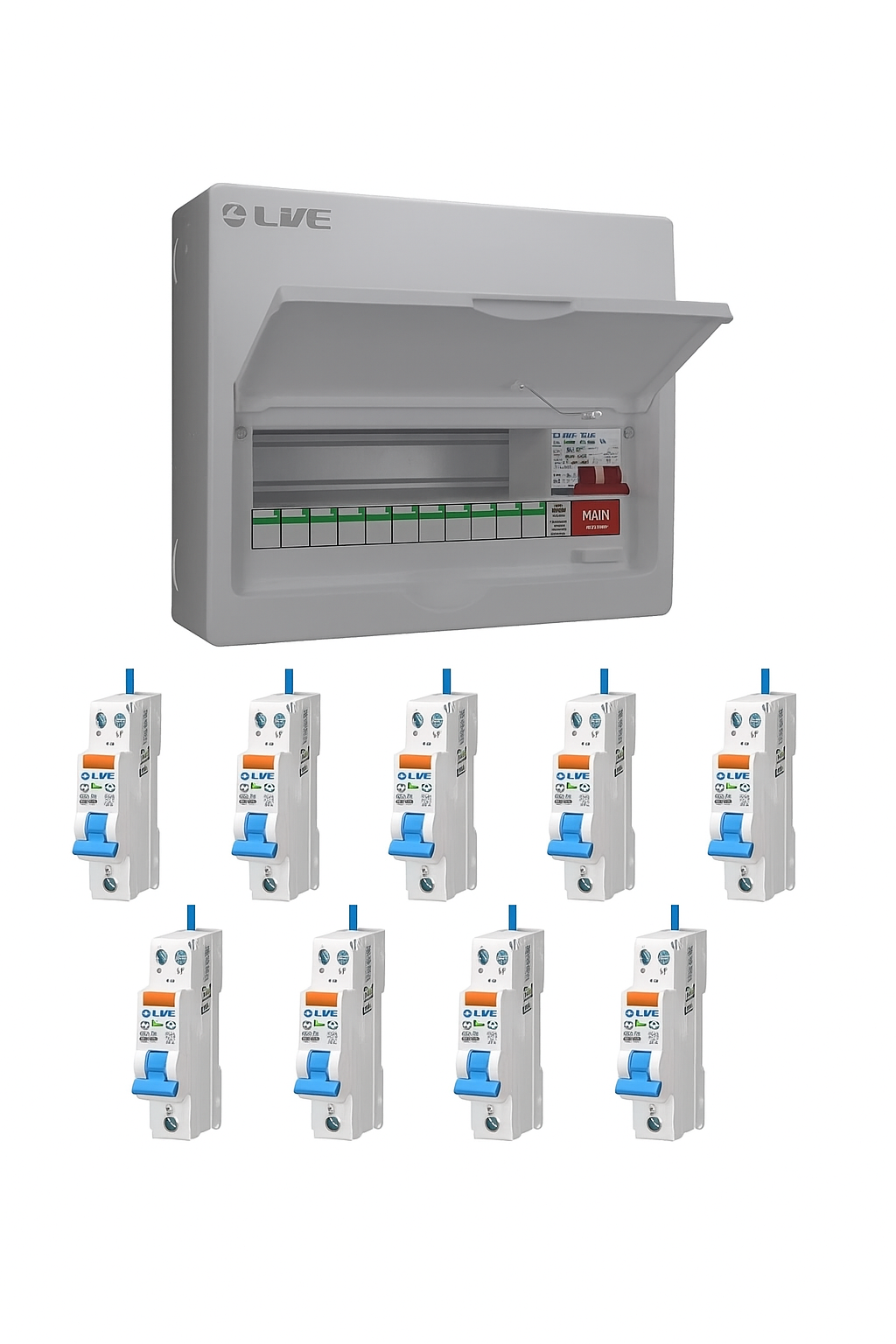

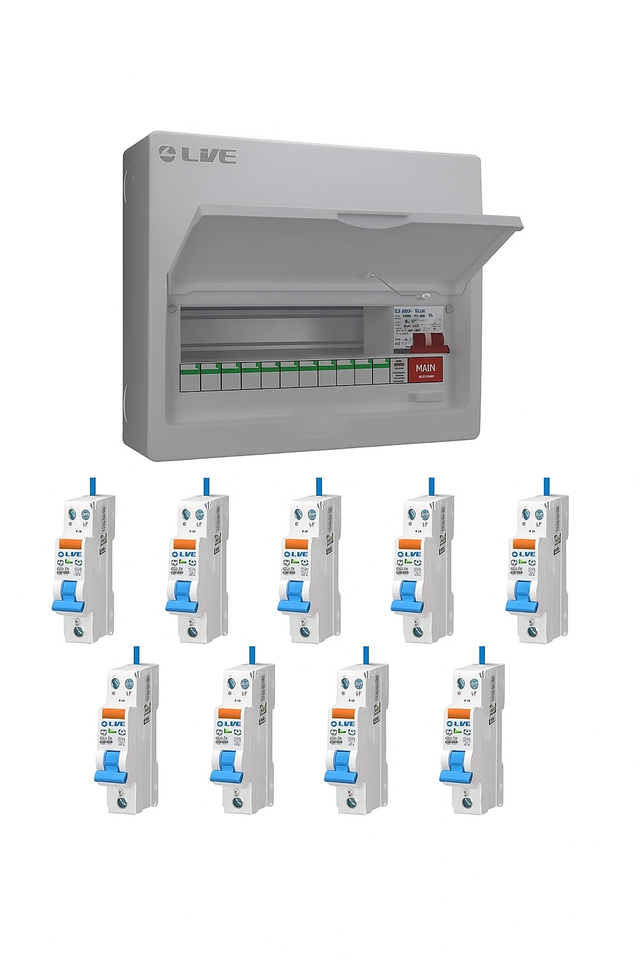

Consumer unit loaded with the following LIVE ELECTRICAL RCBO'S

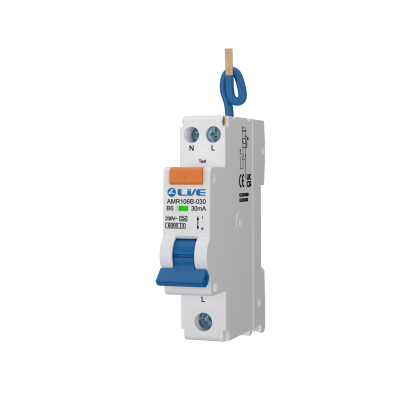

3 x AMR106B-030 Double Pole 6A B Curve 30mA Type A mini RCBO
2 x AMR116B-030 Double Pole 16A B Curve 30mA Type A mini RCBO
1 X AMR120B-030 Double Pole 20A B Curve 30mA Type A mini RCBO
2 x AMR132B-030 Double Pole 32A B Curve 30mA Type A mini RCBO
1 X AMR140B-030 Double Pole 40A B Curve 30mA Type A mini RCBO
