SKU: SKU 26229

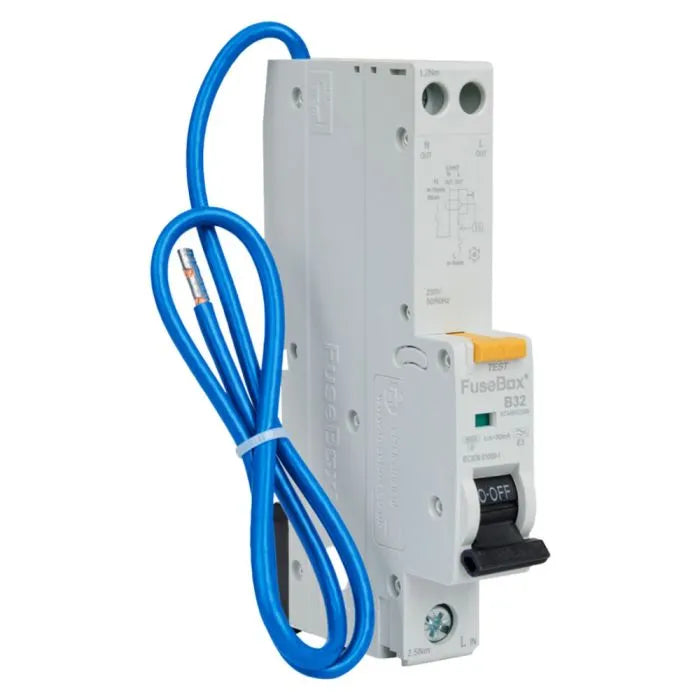

Fusebox RCBO

£11.95 + VAT (£14.34)
AMP

Delivery and Shipping

FREE Delivery (UK Mainland) on Orders Over £70, £5.99 Delivery (UK Mainland) under £70.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product Description


  • Type A RCBO

  • Rated Residual Operating Current: 30mA

  • Single Pole

  • B Curve

  • 6kA Short Circuit Capacity

  • Voltage: 230V

  • Frequency: 50/60Hz

  • Rated Current: 6, 10, 16, 20, 25, 32, 40, 50ln

  • Tripping Characteristics: B Curve 3-5ln

  • Residual Current Characteristics: Type A (AC & Pulsating DC Up To 6mA)

  • Mechanical Endurance: 10,000

  • Maximum Terminal Capacity: 1-16mm²L In / 1-10mm² Out N L

  • Recommended Tightening Torque: 2.5Nm L In / 1.2Nm Out N L

  • Neutral Fly Cable Length: 450mm

  • Mounting: 35mm DIN Rail

  • Construction: PA6

  • IP Rating: IP20
