Product Description
Overview

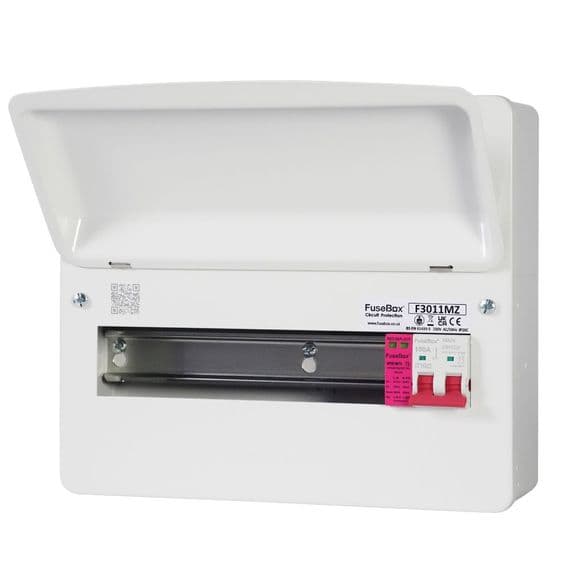

The FuseBox F3011MZ consumer unit features 11 usable ways and comes with 100A Main Switch Incomer, Type 2 Surge Protection, and a 32mm tails clamp.
As with all of the FuseBox T2 Surge Protected consumer units, the F3011MZ has ample space internally for installing both the mini and standard height RCBOs.
Additional features include captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear.
This consumer unit is supplied with an installation pack which includes a busbar, an icon label pack, and a grommet strip.
Key Features
- 11 usable ways
- 100A main switch incomer
- Single Module T2 surge protection device (SPD)
- 32mm tails clamp included

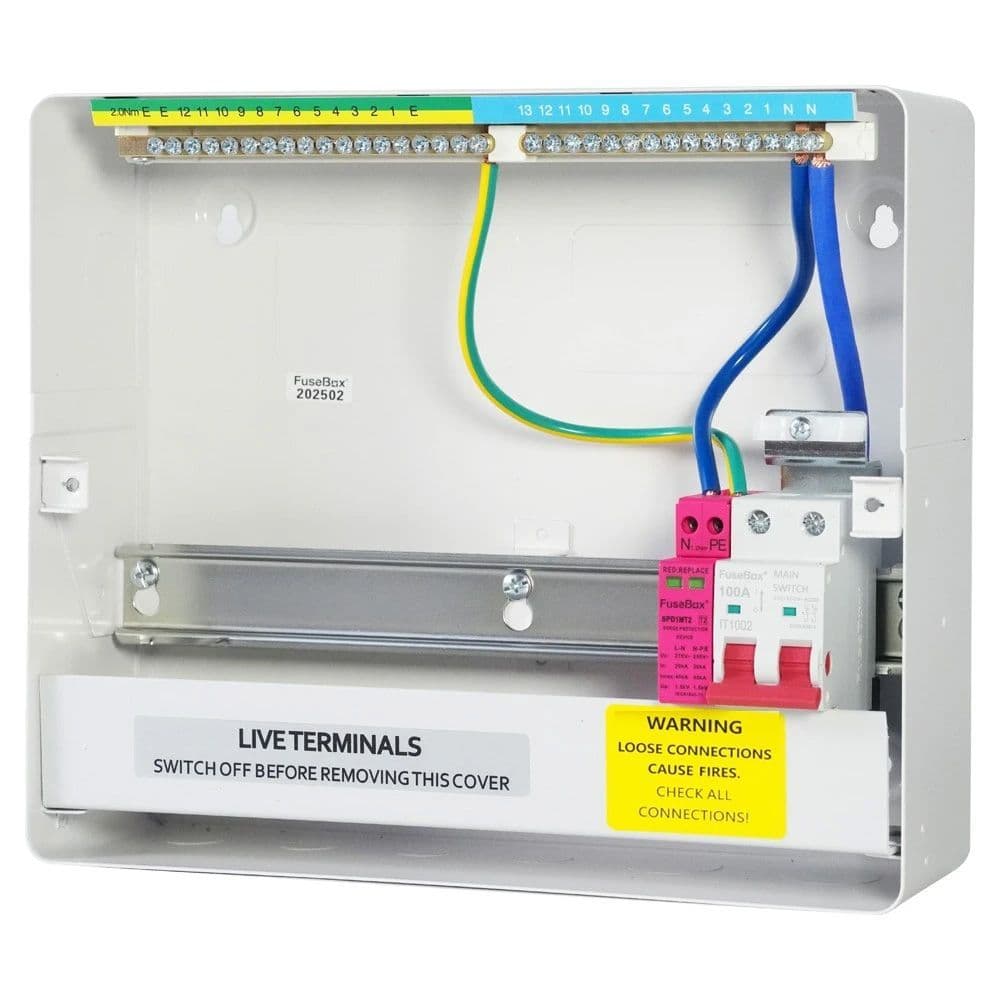

- Earth and neutral terminal bars at the top
- Removable and raised DIN rail
- Round knock-outs on all faces
- Identification label pack
- Captive front cover screws
Additional Information
- Width 306mm x Height 259mm x Depth 113mm
- Flush fit using the AFMF18 Flush Mounting Frame
- IP20XC
- BS EN61439-3
- RAL 9001 powder-coated finish
