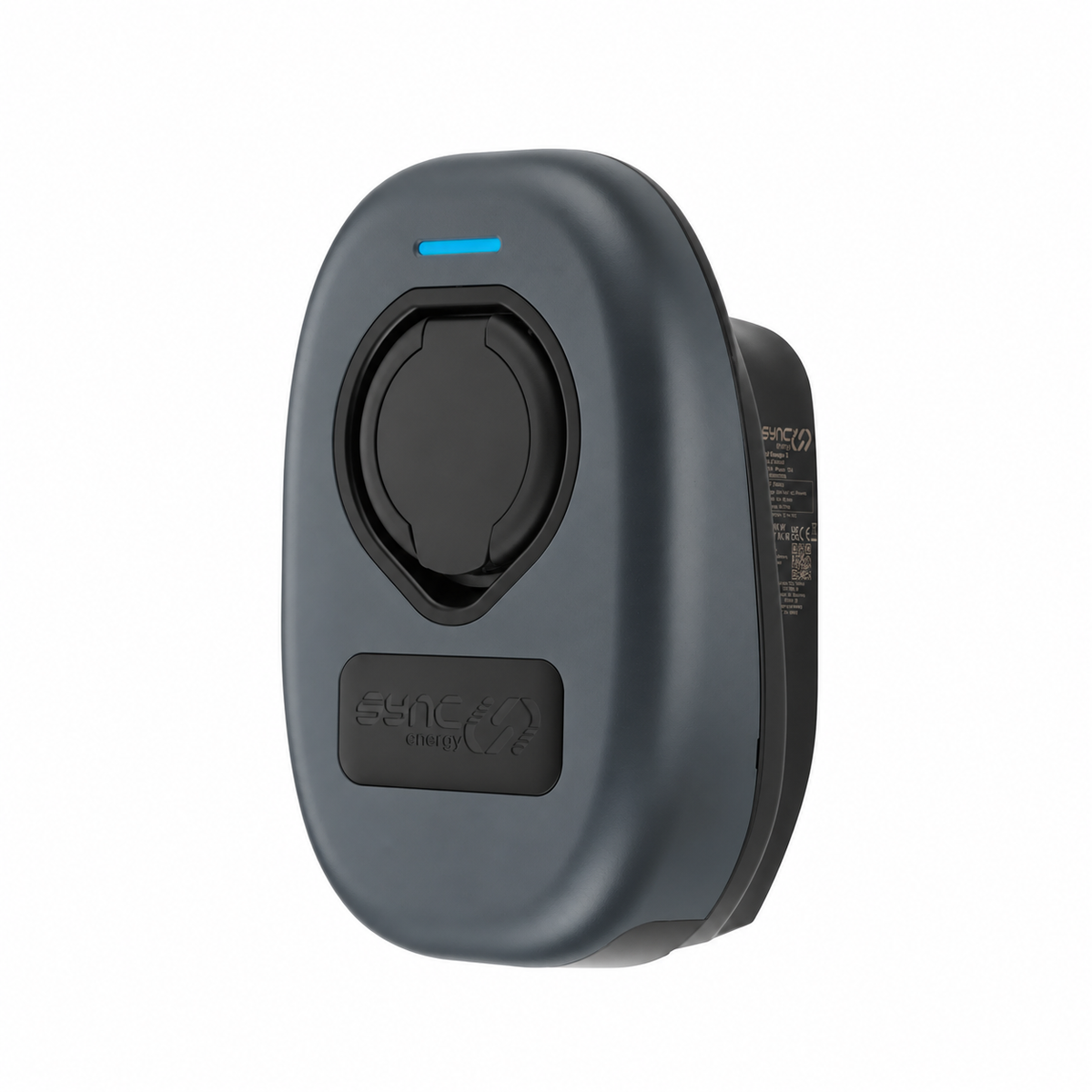

Sync Energy Wall Charger 2, 7.4kW, with Wi-Fi and LAN - EVWC2S7G-01

Sync Energy Wall Charger 2 – 7.4kW Socketed EV Charger with Wi-Fi & LAN

The Sync Energy Wall Charger 2 is a compact, intelligent EV charging solution designed for convenient and cost-effective home charging. Delivering up to 7.4kW (32A), it features Wi-Fi and LAN connectivity, solar charging support and full control through the Sync Energy app.

Its socketed design allows you to use a compatible Type 2 charging cable, while the integrated protection means no separate earth rod is required.

⚡ Fast 7.4kW Charging

Charge your electric vehicle at up to 7.4kW on a single-phase supply, with an adjustable charging current from 6A to 32A.

☀️ Auto Solar Charging

Make better use of your renewable energy by automatically directing available excess solar power into your vehicle—helping reduce reliance on the grid and lower charging costs.

💷 Intelligent Tariff Sense

Tariff Sense connects with UK energy tariffs, providing real-time charging-cost information and helping you schedule charging when electricity is cheaper.

📱 Smart App Control

Connect through Wi-Fi or LAN and use the Sync Energy app to monitor and control your charger. The unit also supports OCPP 1.6J connectivity and free lifetime over-the-air software updates.

🔌 Type 2 Auto-Locking Socket

The charger features a universal Type 2 socket with automatic locking, securely holding the charging cable in place while your vehicle is charging.

🛡️ Integrated Safety Protection

Built-in protective features simplify installation and provide reliable everyday operation:

• ✅ Integrated open PEN conductor protection
• ✅ No separate earth rod required
• ✅ Built-in 30mA Type A RCD protection
• ✅ 6mA DC leakage protection
• ✅ Overcurrent and overvoltage protection
• ✅ Anti-tamper detection
• ✅ Load-management kit supplied

🌧️ Built for Outdoor Installation

The tough, UV-stabilised polycarbonate housing carries an IP65 weather-resistance rating and an IK10 impact rating, making it suitable for indoor or outdoor wall mounting.

🔵 Clear LED Status Indicator

The integrated RGB LED and buzzer provide clear operating updates:

• 🔵 Blue – Standby
• 🔵 Flashing blue – Preparing
• 🟢 Scrolling green – Charging
• 🟢 Flashing green – Finishing
• 🟡 Yellow – No network connection
• 🔴 Red – Error
• 🟣 Purple – Load-balancer error

📋 Technical Specifications

• Charging output: Up to 7.4kW
• Maximum current: 32A
• Configurable current: 6–32A
• Input voltage: 220–240V AC
• Input frequency: 50–60Hz
• Supply: Single phase
• Charging mode: Mode 3
• Socket type: Type 2 with automatic locking
• Connectivity: 2.4GHz Wi-Fi and RJ45 Ethernet
• Connection protocol: OCPP 1.6J
• Bluetooth: 4.2 BR/EDR and BLE
• Ingress protection: IP65
• Impact resistance: IK10
• Operating temperature: -25°C to +55°C
• Dimensions: 305mm × 201mm × 115mm
• Housing: UV-stabilised polycarbonate
• Colour: Black body with anthracite-grey trim
• Warranty: 3 years

📦 Supplied With

• Sync Energy Wall Charger 2
• Load-management kit
• Base-fixing washers
• Assembly lid bolts
• Blanking plug
• 25mm compression gland
• User-side connector
• Cord grip and assembly screws

✅ Key Benefits

• • ⚡ Up to 7.4kW home charging
  • ☀️ Compatible with excess solar generation
  • 💷 Intelligent UK tariff integration
  • 📱 Sync Energy app control
  • 🌐 Wi-Fi and wired LAN connectivity
  • 🔒 Auto-locking Type 2 socket
  • 🛡️ Built-in PEN and RCD protection
  • 🌧️ Weatherproof IP65 construction
  • 🔄 Free lifetime over-the-air updates
  • 🇬🇧 Compliant with UK Smart Charge Points Regulations
