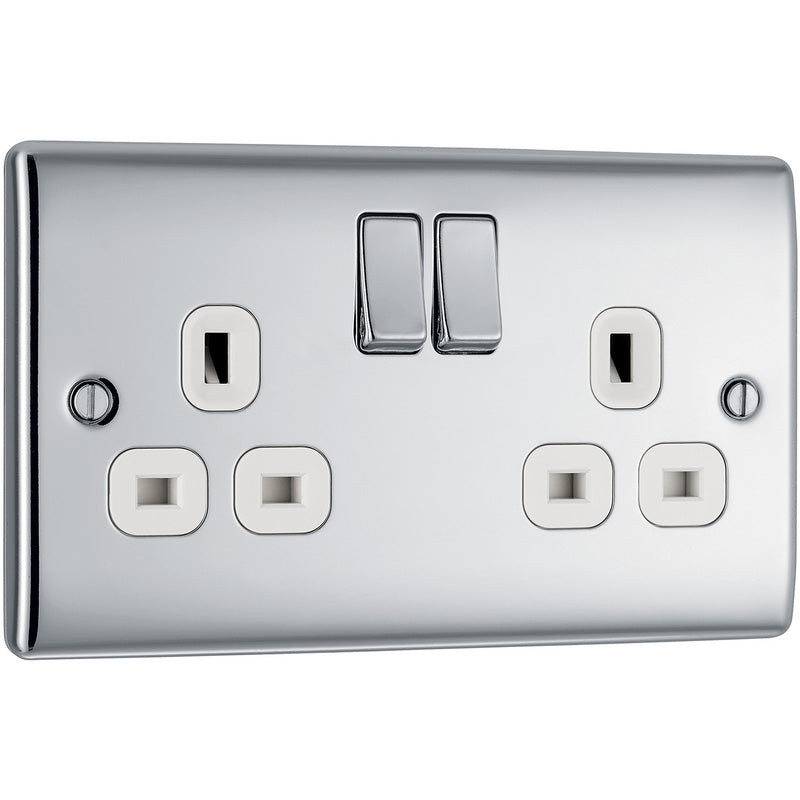

BG NPC22W-01 Nexus Metal, Polished Chrome, 13A Double Switched Socket, White Inserts

General Colour Polished Chrome
Captive Terminal Screws Yes
Backed-out Terminal Screws Yes
Minimum Box Depth (mm) 25
Terminal Capacity (mm²) 3 x 2.5mm²
Front Plate Insert Colour White
Anti-fingerprint Lacquer No
Anti-microbial Property No
Fixing Screws Supplied Yes
Number of Earth Terminals 2
Terminal Arrangement Angled-in line terminals
Terminals with Colour Coding Print Yes
Number of Sockets 2
Socket Type G-3P UK Ireland Hong Kong 220-240V 13A
Number of Switches 2
Screw Caps No
Switch Type (Ways & Poles) Double Pole
Fixing Centres (mm) W-120.6
IP Rating IP20
Operating Voltage (V) 220-240
Warranty (years) 25

NPC22W Spec Sheet
The BG Nexus Metal range has a sleek
and slim profile with softly rounded
edges that portrays a premium look,
and is available in a wide range of
finishes to cater for all tastes.

Features:
• Sleek and slim profile with softly rounded edges
• Power socket for standard 3 pin UK plug
• Fixed integrated plastic gasket to protect metal edges from
moisture
• Colour matched fixing screws
• Angled in-line colour coded terminals with backed out screws for
fast installation
• Easy to install, supplied with fixing screws and installation
instructions
• Twin earth fitted as standard for high integrity circuits
