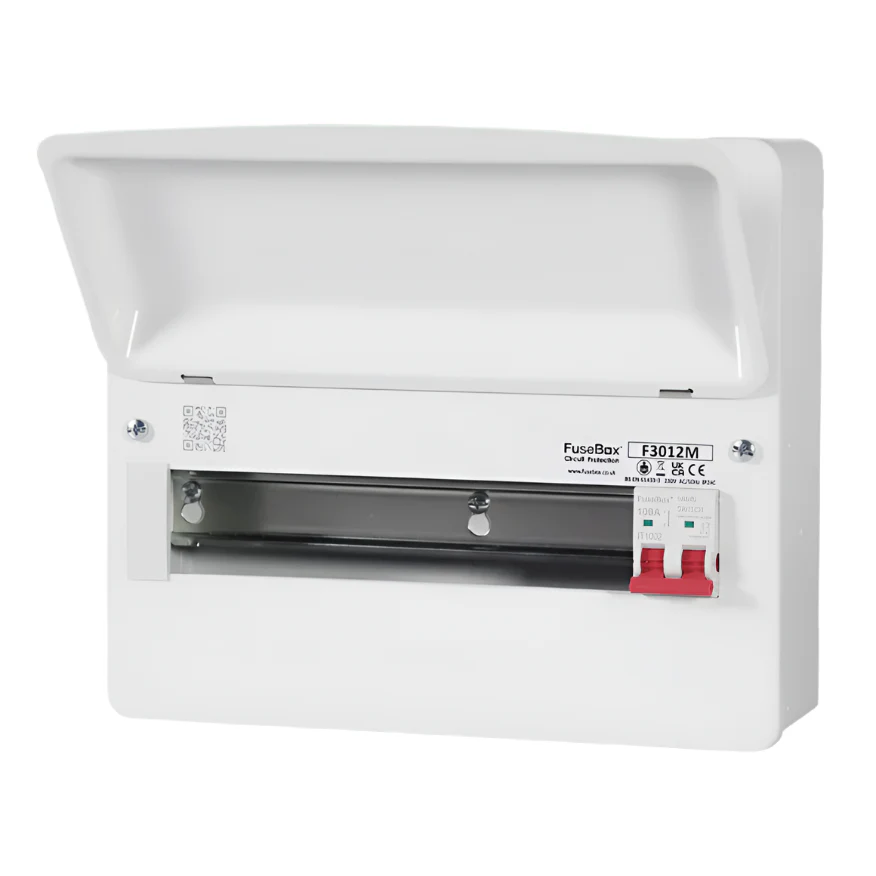

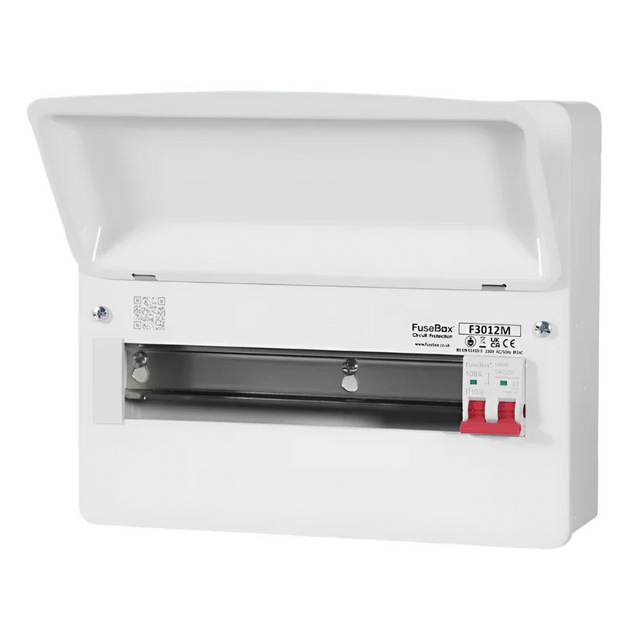

Fusebox F3012M 12-way (100A Main Switch) Consumer Unit

KEY FEATURES

• 12-way consumer unit for increased circuit capacity
• 100A main switch for full installation isolation
• Compatible with RCBOs and MCBs
• DIN rail system for protective device installation
• Designed to support efficient wiring layout
• Suitable for domestic electrical systems
• Provides flexibility for circuit expansion

PRODUCT OVERVIEW

The FuseBox F3012M is a 12-way consumer unit designed for domestic electrical installations requiring increased circuit capacity with reliable distribution and isolation. It is fitted with a 100A main switch, allowing full isolation of all outgoing circuits during maintenance or emergencies. The unit is designed to accept standard DIN rail-mounted protective devices, enabling flexible circuit configuration using RCBOs or MCBs, depending on installation requirements. Its 12-way capacity makes it suitable for medium to larger residential properties where multiple circuits are needed for lighting, socket outlets, and fixed appliances. The internal layout is arranged to support straightforward cable routing, helping electricians achieve a clean and organised installation. Suitable for surface mounting, the enclosure is intended for indoor use within residential environments. The F3012M supports compliance with UK wiring practices while providing dependable distribution across multiple circuits. Its design allows access for inspection, testing, and maintenance, ensuring efficient installation and long-term usability. The increased number of ways provides flexibility for future expansion, making it suitable for evolving electrical requirements in modern homes.

TECHNICAL SPECIFICATIONS

• Manufacturer: FuseBox
• Model reference: F3012M
• Number of ways: 12
• Main switch rating: 100A
• Mounting method: Surface mount
• Enclosure material: Powder-coated steel
• IP rating: IP2XC
• Device compatibility: RCBOs and MCBs
• Installation environment: Indoor use
• Compliance: UK wiring regulations
• Dimensions (H x W x D): 259 × 306 × 113 mm

APPLICATIONS

The F3012M is suitable for domestic installations such as houses, extensions, or properties requiring a higher number of circuits. It distributes power to lighting, socket outlets, and fixed appliances, providing a reliable solution for residential electrical systems. Its capacity allows for both current circuit demands and future expansion, where additional circuits may be required.

WHY CHOOSE THIS PRODUCT

The FuseBox F3012M offers a reliable and flexible solution for electricians working on domestic installations requiring additional circuit capacity. Its 12-way configuration, combined with a 100A main switch, ensures safe distribution and isolation. The design supports efficient installation and straightforward maintenance, making it a dependable choice for modern residential electrical systems.
