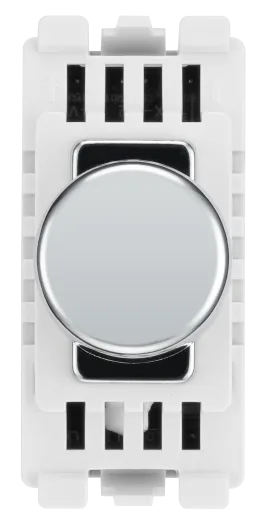

BG Nexus 2-Way Intelligent Dual Mode Dimmer Module - RPCDLT

• Easy to install with simple and secure locate and clip fitting to frame
• Captive backed out terminal screws for fast installation
• Interchangeable rockers provide flexibility
• No visible plastic around switches
• Wide range of module for customisable configuration

This item is 2-Way Intelligent Dual Mode Dimmer Module

• Switchable Dimmer module for choice of trailing or leading edge (set to trailing edge as default)
• Adjust the lighting level to suit the mood and save power at lower lighting levels with the ability to set your minimum dimming level
• Soft start brings the lights to a set level in around 1 second and extends the life of lamps
• Smooth dimming control with silent operation - no noise when dimming
• Overload protection prevents failure if you mistakenly connect your dimmer to too many lights or transformers, and will turn the lights down or off until the load is corrected
• Support for lower wattage lamps eliminates flicker
• 2 way push on/off with rotary control
• Supplied with dimmer knob
• Suitable for LED, Halogen and Incandescent lamps
• Simple secure 'locate & clip' fitting to frame
• Captive backed out terminal screws for fast installation
• Module to be installed with Grid frame and plate

Technical Specifications:

• Standard(s): BS EN 60669-2-1
• Voltage: 220-240V AC
• Load Rating (Max/Min per module)
• Dimmable LED: Trailing: 5-150W, Leading: 5-100W
• Tungsten/Incandescent: Trailing: 5-150W, Leading: 5-100W
• Halogen: Trailing: 5-150W, Leading: 5-100W
• Type: Switchable Leading/Trailing Edge (set to Trailing Edge as default)
• Terminal Capacity: 2 x 1mm² & 2 x 1.5mm²
• RoHS Directive: Yes
• WEEE Directive: Yes
• Mounting Box Depth (Min): 25mm
