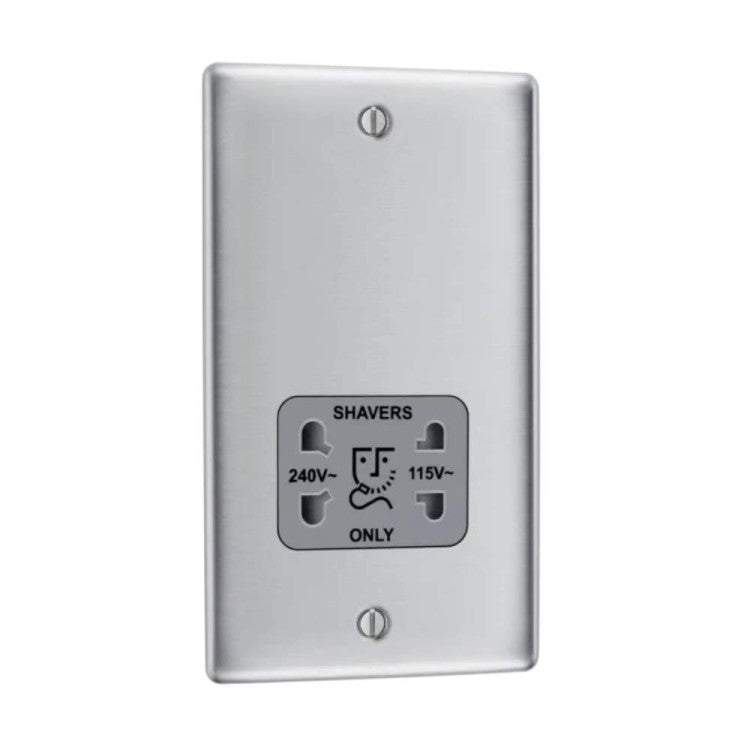

BG NBS20G Nexus Metal Brushed Steel, Shaver Socket, Dual Voltage 115/240V, Grey Insert
£26.00 + VAT (£31.20)
BG NBS20G Nexus Metal Brushed Steel, Shaver Socket, Dual Voltage 115/240V, Grey Insert is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
FREE Delivery (UK Mainland) on Orders Over £70, £5.99 Delivery (UK Mainland) under £70.
BG NBS20G Nexus Metal Brushed Steel, Shaver Socket, Dual Voltage 11...
£26.00
+ VAT (£31.20)
Unit price
/
Unavailable
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Description
General Colour Brushed Steel
Captive Terminal Screws Yes
Backed-out Terminal Screws Yes
Minimum Box Depth (mm) 47
Terminal Capacity (mm²) 3 x 2.5mm²
Front Plate Insert Colour Grey
Anti-fingerprint Lacquer Yes
Anti-microbial Property No
Fixing Screws Supplied Yes
Number of Earth Terminals 1
Terminal Arrangement In Line Terminals
Terminals with Colour Coding Print Yes
Number of Sockets 2
Socket Type Z - 2P UK Shaver
Number of Switches 0
Screw Caps No
Switch Type (Ways & Poles) N/A
Fixing Centres (mm) H-120.6
IP Rating IP41
Operating Voltage (V) 220-240
Warranty (years) 25
Technical Line Drawing
NBS20G Spec Sheet
The BG Nexus Metal range has a sleek
and slim profile with softly rounded
edges that portrays a premium look,
and is available in a wide range of
finishes to cater for all tastes.
Features:
• Sleek and slim profile with softly rounded edges
• Easy to install, supplied with fixing screws and installation
instructions
• Colour coded terminals with backed out screws for fast
installation
• Fixed integrated plastic gasket to protect metal edges from
moisture
• Colour matched fixing screws
Captive Terminal Screws Yes
Backed-out Terminal Screws Yes
Minimum Box Depth (mm) 47
Terminal Capacity (mm²) 3 x 2.5mm²
Front Plate Insert Colour Grey
Anti-fingerprint Lacquer Yes
Anti-microbial Property No
Fixing Screws Supplied Yes
Number of Earth Terminals 1
Terminal Arrangement In Line Terminals
Terminals with Colour Coding Print Yes
Number of Sockets 2
Socket Type Z - 2P UK Shaver
Number of Switches 0
Screw Caps No
Switch Type (Ways & Poles) N/A
Fixing Centres (mm) H-120.6
IP Rating IP41
Operating Voltage (V) 220-240
Warranty (years) 25
Technical Line Drawing
NBS20G Spec Sheet
The BG Nexus Metal range has a sleek
and slim profile with softly rounded
edges that portrays a premium look,
and is available in a wide range of
finishes to cater for all tastes.
Features:
• Sleek and slim profile with softly rounded edges
• Easy to install, supplied with fixing screws and installation
instructions
• Colour coded terminals with backed out screws for fast
installation
• Fixed integrated plastic gasket to protect metal edges from
moisture
• Colour matched fixing screws
