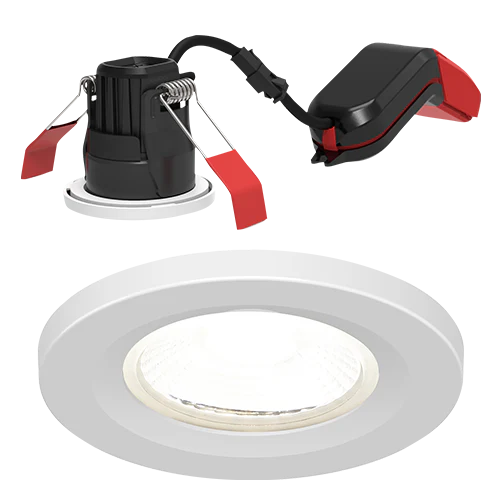

ANSELL PRISM PRO MINI CCT 5W DOWNLIGHT - APRILEDP/MINI/CCT

PRISM PRO MINI CCT FIRE RATED DOWNLIGHT 5W

220-240V IP65 dimmable CCT selectable miniature fire rated performance downlight suitable for residential and hospitality applications

Ultra slim remote driver with loop-in, loop-out push fit terminals provide an easy and efficient installation

Can be used as the sole light source or as a complimentary product to Prism Pro / Prism Pro Anti-Glare

Unique angled LED driver for easy installation through the smaller downlight cut out

Detachable LED driver for fast fix install

Low profile design and arched remote driver allows installation into shallow ceiling voids

Fully tested for 30, 60 and 90 minute ceiling types to meet Part B of Building Regulations

Fully tested to meet Part C (moisture), Part E (acoustic) and Part L (energy) of Building Regulations

GENERAL INFORMATION

• Lamp Type LED
• Dimmable Yes
• Fire Rated Yes
• IP Rating IP65
• Class Protection 2
• Internal / External Internal
• Surface / Recessed / Suspended Recessed
• Lifetime (Hrs) L70 54,000
• Warranty (Years) 5
• Diameter (mm) 55
• Height (mm) 57
• Accessories APRILEDP/MINIBZ/BLK, APRILEDP/MINIBZ/CH, APRILEDP/MINIBZ/SC, ACFLP/3

TECHNICAL INFORMATION

• Wattage 5W
• Lumens Delivered 450lm (4000K)
• Lm/W 90lm (4000K)
• Beam Angle 60
• CRI Ra 80
• CCT 2700K/3000K/4000K/6000K
• Input 220-240V
• Hertz 50/60Hz
• Operating Temp -5°C to 25°C
• SDCM 6
• UGR 2
