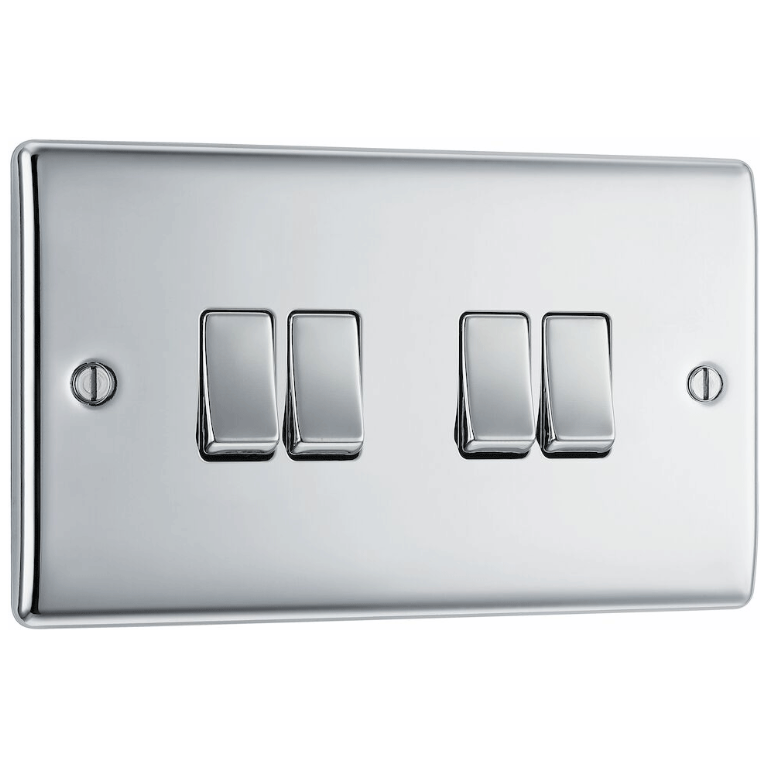

BG NPC44-01 Nexus Metal Polished Chrome, 20A 16AX Quadruple Switch, 2 Wa
£14.25 + VAT (£17.10)
BG NPC44-01 Nexus Metal Polished Chrome, 20A 16AX Quadruple Switch, 2 Wa is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
FREE Delivery (UK Mainland) on Orders Over £70, £5.99 Delivery (UK Mainland) under £70.
BG NPC44-01 Nexus Metal Polished Chrome, 20A 16AX Quadruple Switch,...
£14.25
+ VAT (£17.10)
Unit price
/
Unavailable
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Description
General Colour Polished Chrome
Captive Terminal Screws Yes
Backed-out Terminal Screws Yes
Minimum Box Depth (mm) 25
Terminal Capacity (mm²) 2 x 2.5mm², 4 x 1.0mm², 1 x 4mm²
Anti-fingerprint Lacquer No
Anti-microbial Property No
Fixing Screws Supplied Yes
Terminal Arrangement N/A
Terminals with Colour Coding Print No
Number of Switches 4
Screw Caps No
Switch Style Type Rocker
Switch Type (Ways & Poles) Two Way
Switch Location Position Wall
Fixing Centres (mm) W-120.6
IP Rating IP20
Operating Voltage (V) 220-240
Switch State On/Off
Warranty (years) 25
NPC44 Spec Sheet
The BG Nexus Metal range has a sleek
and slim profile with softly rounded
edges that portrays a premium look,
and is available in a wide range of
finishes to cater for all tastes.
Features:
• Sleek and slim profile with softly rounded edges
• Fixed integrated plastic gasket to protect metal edges from
moisture
• Colour matched fixing screws
• Captive, backed out terminal screws for fast installation
• Easy to install, supplied with fixing screws and installation
instructions
• 20 Amp, 16AX inductive rated
Captive Terminal Screws Yes
Backed-out Terminal Screws Yes
Minimum Box Depth (mm) 25
Terminal Capacity (mm²) 2 x 2.5mm², 4 x 1.0mm², 1 x 4mm²
Anti-fingerprint Lacquer No
Anti-microbial Property No
Fixing Screws Supplied Yes
Terminal Arrangement N/A
Terminals with Colour Coding Print No
Number of Switches 4
Screw Caps No
Switch Style Type Rocker
Switch Type (Ways & Poles) Two Way
Switch Location Position Wall
Fixing Centres (mm) W-120.6
IP Rating IP20
Operating Voltage (V) 220-240
Switch State On/Off
Warranty (years) 25
NPC44 Spec Sheet
The BG Nexus Metal range has a sleek
and slim profile with softly rounded
edges that portrays a premium look,
and is available in a wide range of
finishes to cater for all tastes.
Features:
• Sleek and slim profile with softly rounded edges
• Fixed integrated plastic gasket to protect metal edges from
moisture
• Colour matched fixing screws
• Captive, backed out terminal screws for fast installation
• Easy to install, supplied with fixing screws and installation
instructions
• 20 Amp, 16AX inductive rated
