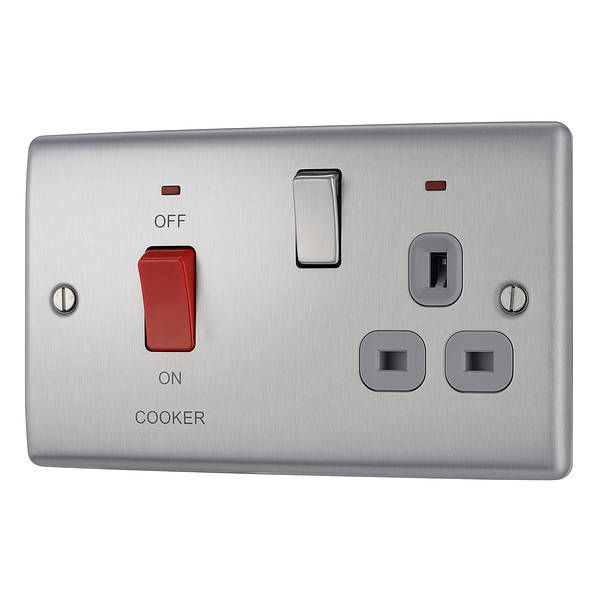

BG NBS70G-01 Nexus Metal, Brushed Steel, 45A Cooker Control Unit With 13A Socket And LED Indicators, Grey Inserts

General Colour Brushed Steel
Captive Terminal Screws Yes
Backed-out Terminal Screws Yes
Main Power Indicator Yes
Minimum Box Depth (mm) 47
Terminal Capacity (mm²) 4 x 4mm²
Front Plate Insert Colour Grey
Anti-microbial Property No
Fixing Screws Supplied Yes
Number of Earth Terminals 2
Terminal Arrangement Angled terminals
Terminals with Colour Coding Print Yes
Number of Sockets 1
Number of Switches 2
Screw Caps No
Switch Type (Ways & Poles) Double Pole
Fixing Centres (mm) W-120.6
Operating Voltage (V) 220-240
Warranty (years) 25

NBS70G-01 Spec Sheet
The BG Nexus Metal range has a sleek
and slim profile with softly rounded
edges that portrays a premium look,
and is available in a wide range of
finishes to cater for all tastes.

Features:
• Sleek and slim profile with softly rounded edges
• Easy to install, supplied with fixing screws and installation
instructions
• Flush LED power indicator
• Colour coded terminals with backed out screws for fast
installation
• Double pole for peace of mind and safer installation
• Twin earth for high integrity circuits
• Fixed integrated plastic gasket to protect metal edges from
moisture
• Colour matched fixing screws
