SKU:
SKU 27823

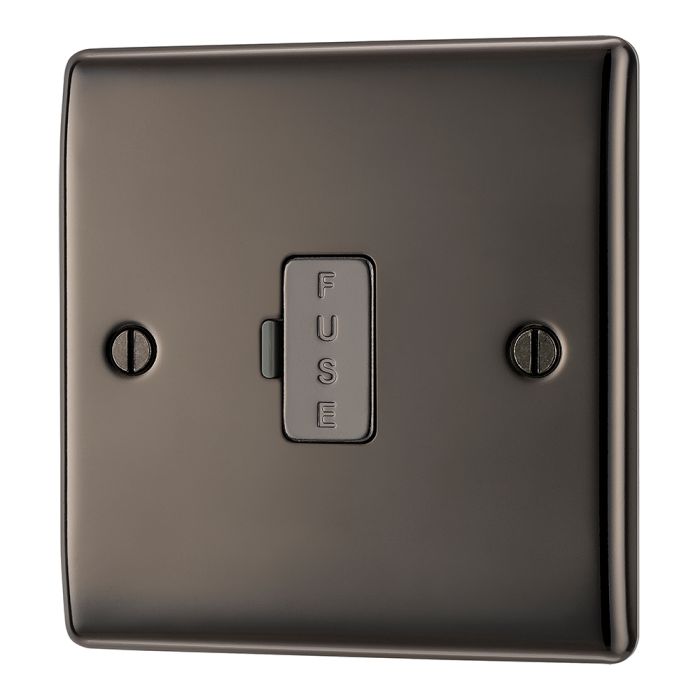

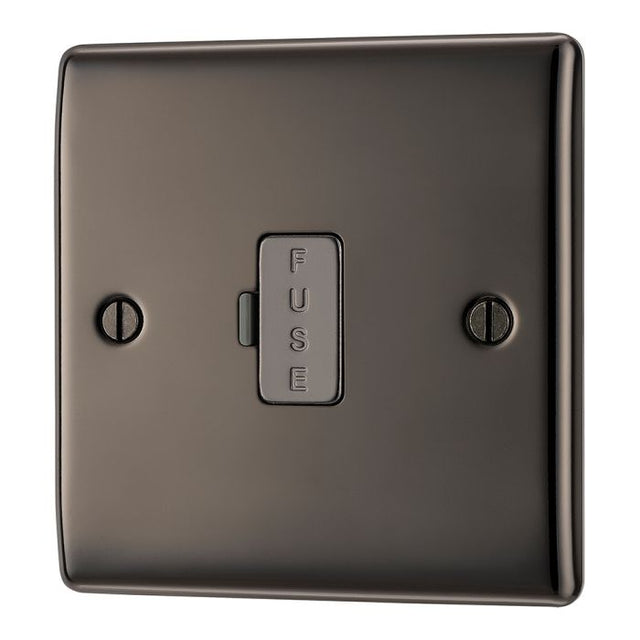

BG NBN54-01 Nexus Metal Black Nickel, 13A Unswitched Fused Connection Unit
£7.90 + VAT (£9.48)
BG NBN54-01 Nexus Metal Black Nickel, 13A Unswitched Fused Connection Unit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
FREE Delivery (UK Mainland) on Orders Over £70, £5.99 Delivery (UK Mainland) under £70.
BG NBN54-01 Nexus Metal Black Nickel, 13A Unswitched Fused Connecti...
£7.90
+ VAT (£9.48)
Unit price
/
Unavailable
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Description
General Colour Black Nickel
Captive Terminal Screws Yes
Backed-out Terminal Screws Yes
Main Power Indicator No
Minimum Box Depth (mm) 35
Terminal Capacity (mm²) 2 x 6.0mm², 3 x 2.5mm², 3 x 4mm²
Fused Yes
Fused Holder Colour Black Nickel - RAL9004 (Signal Black)
Anti-fingerprint Lacquer No
Anti-microbial Property No
Flex Out No
Flex Out Position None
Supplied with Mounting Box No
Cable Outlet No
Fixing Screws Supplied Yes
Number of Earth Terminals 2
Terminal Arrangement Angled terminals
Terminals with Colour Coding Print Yes
Number of Switches 0
Screw Caps No
Switch Type (Ways & Poles) N/A
Fixing Centres (mm) W-60.3
IP Rating IP20
Operating Voltage (V) 250
Warranty (years) 25
NBN54-01 Spec Sheet
The BG Nexus Metal range has a sleek and slim profile with softly rounded edges that portrays a premium look, and is available in a wide range of finishes to cater for all tastes.
Features:
• Sleek and slim profile with softly rounded edges
• Easy to install, supplied with fixing screws and installation instructions
• Flush LED power indicator on Nxx52 and Nxx53
• Cable entry on Nxx53 and Nxx55
• Colour coded terminals with backed out screws for fast installation
• Double pole for peace of mind and safer installation
• Twin earth for high integrity circuits
• Fixed integrated plastic gasket to protect metal edges from moisture
• Colour matched fixing screws
Captive Terminal Screws Yes
Backed-out Terminal Screws Yes
Main Power Indicator No
Minimum Box Depth (mm) 35
Terminal Capacity (mm²) 2 x 6.0mm², 3 x 2.5mm², 3 x 4mm²
Fused Yes
Fused Holder Colour Black Nickel - RAL9004 (Signal Black)
Anti-fingerprint Lacquer No
Anti-microbial Property No
Flex Out No
Flex Out Position None
Supplied with Mounting Box No
Cable Outlet No
Fixing Screws Supplied Yes
Number of Earth Terminals 2
Terminal Arrangement Angled terminals
Terminals with Colour Coding Print Yes
Number of Switches 0
Screw Caps No
Switch Type (Ways & Poles) N/A
Fixing Centres (mm) W-60.3
IP Rating IP20
Operating Voltage (V) 250
Warranty (years) 25
NBN54-01 Spec Sheet
The BG Nexus Metal range has a sleek and slim profile with softly rounded edges that portrays a premium look, and is available in a wide range of finishes to cater for all tastes.
Features:
• Sleek and slim profile with softly rounded edges
• Easy to install, supplied with fixing screws and installation instructions
• Flush LED power indicator on Nxx52 and Nxx53
• Cable entry on Nxx53 and Nxx55
• Colour coded terminals with backed out screws for fast installation
• Double pole for peace of mind and safer installation
• Twin earth for high integrity circuits
• Fixed integrated plastic gasket to protect metal edges from moisture
• Colour matched fixing screws
