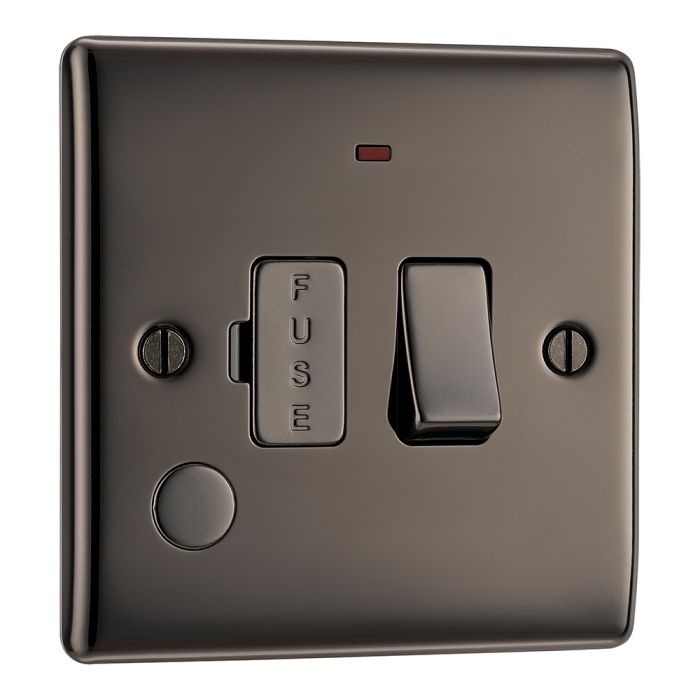

BG NBN53-01 Nexus Metal Black Nickel, 13A Switched Fused Connection Unit with LED Indicator and Flex Outlet

General Colour Black Nickel
Captive Terminal Screws Yes
Backed-out Terminal Screws Yes
Main Power Indicator Yes
Minimum Box Depth (mm) 35
Terminal Capacity (mm²) 3 x 2.5mm²
Fused Yes
Fused Holder Colour Black Nickel - RAL9004 (Signal Black)
Anti-fingerprint Lacquer No
Anti-microbial Property No
Flex Out Yes
Flex Out Position Front Face
Supplied with Mounting Box No
Cable Outlet Yes
Fixing Screws Supplied Yes
Number of Earth Terminals 2
Terminal Arrangement Angled terminals
Terminals with Colour Coding Print Yes
Number of Switches 1
Screw Caps No
Switch Type (Ways & Poles) Double Pole
Fixing Centres (mm) W-60.3
IP Rating IP20
Operating Voltage (V) 250
Warranty (years) 25

NBN53-01 Spec Sheet
The BG Nexus Metal range has a sleek and slim profile with softly rounded edges that portrays a premium look, and is available in a wide range of finishes to cater for all tastes.

Features:
• Sleek and slim profile with softly rounded edges
• Easy to install, supplied with fixing screws and installation instructions
• Flush LED power indicator on Nxx52 and Nxx53
• Cable entry on Nxx53 and Nxx55
• Colour coded terminals with backed out screws for fast installation
• Double pole for peace of mind and safer installation
• Twin earth for high integrity circuits
• Fixed integrated plastic gasket to protect metal edges from moisture
• Colour matched fixing screws
