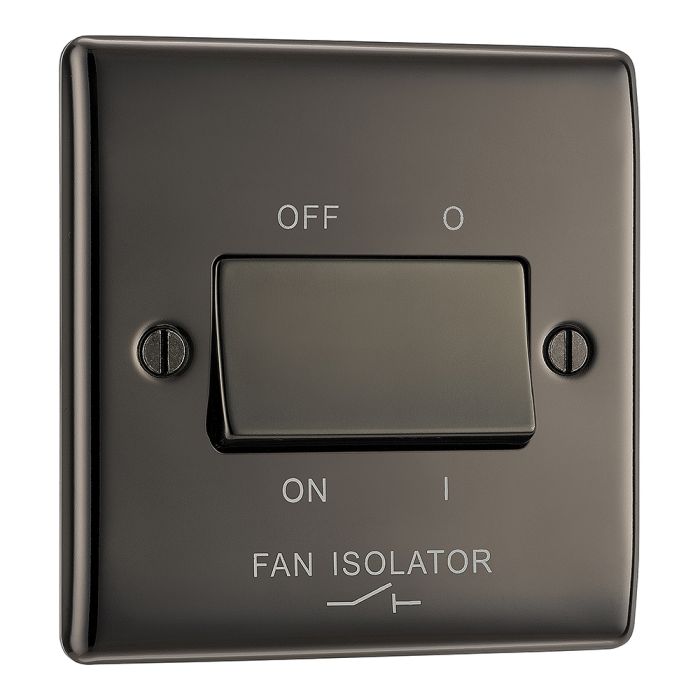

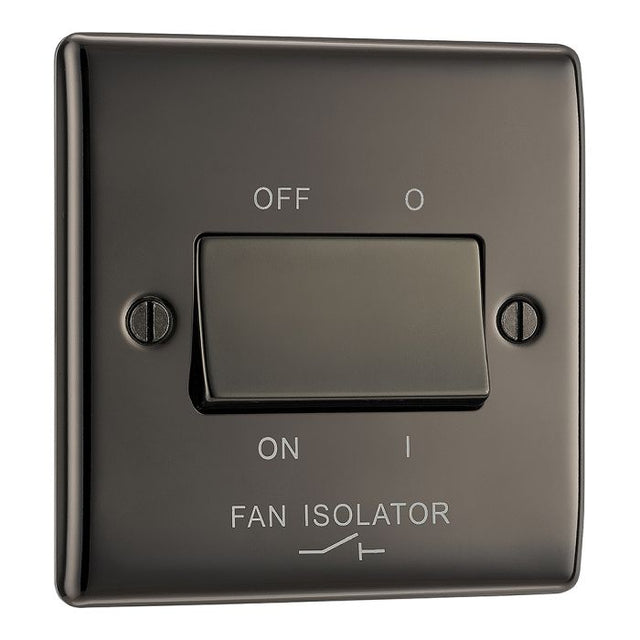

BG NBN15-01 Nexus Metal Black Nickel, 10AX Triple Pole Fan Isolator Switch

General Colour Black Nickel
Captive Terminal Screws Yes
Backed-out Terminal Screws Yes
Minimum Box Depth (mm) 25
Terminal Capacity (mm²) 4 x 1.0mm², 4 x 2.5mm², 2 x 2.5mm², 1 x 4mm²
Anti-fingerprint Lacquer No
Anti-microbial Property No
Fixing Screws Supplied Yes
Terminal Arrangement N/A
Terminals with Colour Coding Print No
Number of Switches 1
Screw Caps No
Switch Style Type Rocker
Switch Type (Ways & Poles) 3 Pole
Switch Location Position Wall
Fixing Centres (mm) W-60.3
IP Rating IP20
Operating Voltage (V) 220-240
Switch State On/Off
Warranty (years) 25

NBN15-01 Spec Sheet
The BG Nexus Metal range has a sleek and slim profile with softly rounded edges that portrays a premium look, and is available in a wide range of finishes to cater for all tastes.

Features:
• Sleek and slim profile with softly rounded edges
• Fixed integrated plastic gasket to protect metal edges from moisture
• Colour matched fixing screws
• Captive, backed out terminal screws for fast installation
• Easy to install, supplied with fixing screws and installation instructions
• 10 Amp, 10AX inductive rated
• The Fan Isolator switch has a triple pole switching design, however can be used for double pole applications if required.
