SKU:
SKU 13881

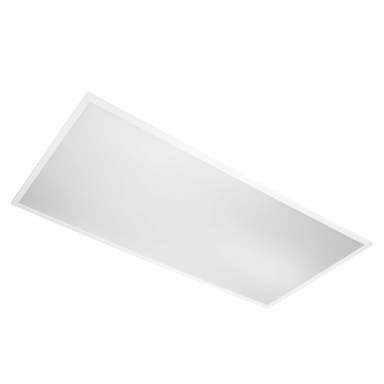

Alden II Pro Backlit LED Panel with Emergency Option ALDP1206-SCT 5200lm (07166)
£69.00 + VAT (£82.80)
Alden II Pro Backlit LED Panel with Emergency Option ALDP1206-SCT 5200lm (07166) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
FREE Delivery (UK Mainland) on Orders Over £70, £5.99 Delivery (UK Mainland) under £70.
Alden II Pro Backlit LED Panel with Emergency Option ALDP1206-SCT 5...
£69.00
+ VAT (£82.80)
Unit price
/
Unavailable
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Description
Voltage
220-240Vac 50/60Hz
Current (mA)
206
Rated Power (W)
45
CCT Words
Cool White (Warm White, Day Light)
CCT (K)
4000 (3000, 6500)
Total Luminous Flux (lm)
5200 (5000,5000)
Nominal Lifetime (h)
40000
L70B50 Lifetime (h)
40000
L80B10 Lifetime (h)
60000
L90 Lifetime (h)
54000
Blue Light Hazard
RG1
Glow wire temperature(℃)
850
UGR
<19
SDCM of CCT
<6
Flicker %
1
Power Factor
0.95
Ambient Temperature Range (°C)
-20 to 40
Weight (kg)
3.65
In-rush current (peak/duration) (A)
30 A / 110 μs
Protection Rating
Class III Luminaire, Class II driver
IK Rating
IK04
IP Rating
IP20 rear/ IP44 front
Emergency Luminous Flux (lm)
550
Driver Part Number
CertaDrive 42W 1.05A 40V 230V I
Driver Input Voltage
220-240 Vac 50/60 Hz
Driver Maximum Input Current (mA)
210
Driver Maximum Power (W)
42
Driver Output Voltage (Vdc)
30-40
